riff 0.4.0のCore Runtime (Kantive/Istioなし)を試す
riff 0.4.0がリリースされました。
目玉はPluggable Runtimeの導入です。これにより、0.3.0まで必須だったKnative/Istioが必須ではなくなりました。またFunction以外にもApplicationのデプロイもサポートされました。
0.4.0からriffはBuildとRuntimeの抽象化レイヤーに分かれました。
それぞれ以下の選択肢が選べます。
-
Build ... コンテナイメージをビルドしてレポジトリにpushする
- Function ... Function InvokersのCloud Native Buildpacksを使って関数を実装したソースコードからイメージを作成。
- Application ... Cloud FoundryのCloud Native Buildpacksを使って普通のアプリケーションソースコードからのイメージを作成
- Container ... 既存のイメージを使用。
-
Runtime ... Buildで作成したコンテナイメージをデプロイする
- Core Runtime ... Kubernete標準の
DeploymentとServiceを使用してデプロイ。 - Knative Runtime ... Istioの
Ingress、KnativeのRoute、Configurationを使用してデプロイ (Knative ServingがIstioが必要)。 - Streaming runtime ... ストリーム処理用にデプロイ。0.4.0では未リリース(projectriff/riff#1159)。
- Core Runtime ... Kubernete標準の
riff 0.4.0ではBuildではKnative Build(プロジェクトはTekton Pipelineに移行)が使用されていましたが、今後はkpackに移行するようです。(projectriff/riff#1348, projectriff/system#87)
Knative Runtumeとは異なり、Core RuntimeではAuto ScalingやIngressは自動で作成されないため、自分で追加する必要があります。
個人的にはApplication対応に魅力を感じています。
riffのインストール
まずはCLIをインストール
brew install riff
バージョンを確認。
$ riff --version
riff version 0.4.0 (d1b042f4247d8eb01ee0b9e984926028a2844fe8)
riffのインストールはHelmで行います。今後はCNABでもインストールできるようになるみたいです(https://github.com/projectriff/cnab-riff)。 Helm自体のインストール方法は割愛します。
helm repo add projectriff https://projectriff.storage.googleapis.com/charts/releases
helm repo update
Core Runtimeのみをインストールします。
helm install projectriff/riff --name riff
次のような出力が得られます。Core Runtimeだけであれば作成されるPodは4つだけです。
NAME: riff
LAST DEPLOYED: Sun Sep 22 17:33:13 2019
NAMESPACE: default
STATUS: DEPLOYED
RESOURCES:
==> v1/ClusterRole
NAME AGE
knative-build-admin 2s
projectriff 2s
projectriff-admin 2s
projectriff-readonly 2s
==> v1/ClusterRoleBinding
NAME AGE
build-controller-admin 2s
riff-system-controller-admin 2s
==> v1/ConfigMap
NAME DATA AGE
config-controller 1 2s
config-logging 1 2s
config-observability 1 2s
==> v1/Deployment
NAME READY UP-TO-DATE AVAILABLE AGE
build-controller 0/1 1 0 2s
build-webhook 0/1 1 0 2s
controller 0/1 1 0 2s
webhook 0/1 1 0 2s
==> v1/Namespace
NAME STATUS AGE
knative-build Active 2s
riff-system Active 2s
==> v1/Pod(related)
NAME READY STATUS RESTARTS AGE
build-controller-f969bf74d-f24qx 0/1 ContainerCreating 0 1s
build-webhook-6f58484688-rc7pq 0/1 ContainerCreating 0 1s
controller-6c9fd6c777-qcqv6 0/1 ContainerCreating 0 1s
webhook-6d5ff8db-k4nx8 0/1 ContainerCreating 0 1s
==> v1/Service
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
build-controller ClusterIP 10.100.200.226 <none> 9090/TCP 2s
build-webhook ClusterIP 10.100.200.169 <none> 443/TCP 2s
controller ClusterIP 10.100.200.119 <none> 9090/TCP 2s
webhook ClusterIP 10.100.200.22 <none> 443/TCP 2s
==> v1/ServiceAccount
NAME SECRETS AGE
build-controller 1 2s
controller 1 2s
==> v1alpha1/ClusterBuildTemplate
NAME AGE
riff-application 1s
riff-function 1s
==> v1alpha1/Image
NAME AGE
creds-init 1s
gcs-fetcher 1s
git-init 1s
nop 1s
==> v1beta1/PodSecurityPolicy
NAME PRIV CAPS SELINUX RUNASUSER FSGROUP SUPGROUP READONLYROOTFS VOLUMES
knative-build false RunAsAny RunAsAny MustRunAs MustRunAs false configMap,secret
Knative Runtimeもインストールする場合は
helm install projectriff/istio --name istio --namespace istio-system --wait helm install projectriff/riff --name riff --set knative.enabled=true
riffのシステムコンポーネントが正しくインストールできているかどうかはriff doctorでチェックできます。
$ riff doctor
NAMESPACE STATUS
riff-system ok
RESOURCE READ WRITE
configmaps allowed allowed
secrets allowed allowed
pods allowed n/a
pods/log allowed n/a
applications.build.projectriff.io allowed allowed
containers.build.projectriff.io allowed allowed
functions.build.projectriff.io allowed allowed
deployers.core.projectriff.io allowed allowed
processors.streaming.projectriff.io allowed allowed
streams.streaming.projectriff.io allowed allowed
adapters.knative.projectriff.io allowed allowed
deployers.knative.projectriff.io allowed allowed
追加されるCustom Resourceは次の通りです。
$ kubectl api-resources --api-group build.projectriff.io
NAME SHORTNAMES APIGROUP NAMESPACED KIND
applications build.projectriff.io true Application
containers build.projectriff.io true Container
functions build.projectriff.io true Function
$ kubectl api-resources --api-group core.projectriff.io
NAME SHORTNAMES APIGROUP NAMESPACED KIND
deployers cdeployer,coredeployer core.projectriff.io true Deployer
$ kubectl api-resources --api-group knative.projectriff.io
NAME SHORTNAMES APIGROUP NAMESPACED KIND
adapters knative.projectriff.io true Adapter
deployers kdeployer,kndeployer,knativedeployer knative.projectriff.io true Deployer
$ kubectl api-resources --api-group streaming.projectriff.io
NAME SHORTNAMES APIGROUP NAMESPACED KIND
processors streaming.projectriff.io true Processor
streams streaming.projectriff.io true Stream
Docker RegistryのCredential設定
以下ではdemoネームスペースで作業します。
kubectl create ns demo
riff credentaial applyでDocker Registryへpushするための認証設定をします。
DOCKER_ID=making
riff credential apply my-creds --docker-hub $DOCKER_ID --set-default-image-prefix -n demo
Secretが作成されます。
$ kubectl get secret my-creds -n demo
NAME TYPE DATA AGE
my-creds kubernetes.io/basic-auth 2 22s
Functionのデプロイ
早速Functionリソースを作成します。
Github上のソースコードからデプロイ
まずはhttps://github.com/projectriff-samples/node-squareのサンプルを使用します。二乗を計算する関数です。
riff function createコマンドでFunctionを作成できます。
riff function create square \
--git-repo https://github.com/projectriff-samples/node-square \
--artifact square.js \
--tail -n demo
次のようなログが出力されます。Node Function Buildpackを使ってコンテナイメージを作成し、Docker Registryにpushします。
Created function "square"
demo/square-function-pod-be6d4f[build-step-git-source-0]: {"level":"warn","ts":1569141998.4517846,"logger":"fallback-logger","caller":"logging/config.go:69","msg":"Fetch GitHub commit ID from kodata failed: \"ref: refs/heads/upstream/release-0.7\" is not a valid GitHub commit ID"}
demo/square-function-pod-be6d4f[build-step-git-source-0]: {"level":"info","ts":1569142000.213918,"logger":"fallback-logger","caller":"git-init/main.go:101","msg":"Successfully cloned \"https://github.com/projectriff-samples/node-square\" @ \"master\" in path \"/workspace\""}
demo/square-function-pod-be6d4f[build-step-build]: -----> Node Engine Buildpack 0.0.16
demo/square-function-pod-be6d4f[build-step-build]: Node Engine 10.15.3: Contributing to layer
demo/square-function-pod-be6d4f[build-step-build]: Downloading from https://nodejs.org/dist/v10.15.3/node-v10.15.3-linux-x64.tar.gz
demo/square-function-pod-be6d4f[build-step-build]: Verifying checksum
demo/square-function-pod-be6d4f[build-step-build]: Expanding to /layers/org.cloudfoundry.node-engine/node
demo/square-function-pod-be6d4f[build-step-build]: Writing NODE_HOME to shared
demo/square-function-pod-be6d4f[build-step-build]: Writing NODE_ENV to shared
demo/square-function-pod-be6d4f[build-step-build]: Writing NODE_MODULES_CACHE to shared
demo/square-function-pod-be6d4f[build-step-build]: Writing NODE_VERBOSE to shared
demo/square-function-pod-be6d4f[build-step-build]: Writing NPM_CONFIG_PRODUCTION to shared
demo/square-function-pod-be6d4f[build-step-build]: Writing NPM_CONFIG_LOGLEVEL to shared
demo/square-function-pod-be6d4f[build-step-build]: Writing WEB_MEMORY to shared
demo/square-function-pod-be6d4f[build-step-build]: Writing WEB_CONCURRENCY to shared
demo/square-function-pod-be6d4f[build-step-build]: Writing .profile.d/0_memory_available.sh
demo/square-function-pod-be6d4f[build-step-build]: -----> Node Function Buildpack 0.1.1
demo/square-function-pod-be6d4f[build-step-build]: riff Node Invoker 0.1.2: Contributing to layer
demo/square-function-pod-be6d4f[build-step-build]: Reusing cached download from buildpack
demo/square-function-pod-be6d4f[build-step-build]: Expanding to /layers/io.projectriff.node/riff-invoker-node
demo/square-function-pod-be6d4f[build-step-build]: npm-installing the node invoker
demo/square-function-pod-be6d4f[build-step-build]: added 82 packages from 48 contributors and audited 451 packages in 3.102s
demo/square-function-pod-be6d4f[build-step-build]: found 1 critical severity vulnerability
demo/square-function-pod-be6d4f[build-step-build]: run `npm audit fix` to fix them, or `npm audit` for details
demo/square-function-pod-be6d4f[build-step-build]: NodeJS square.js: Contributing to layer
demo/square-function-pod-be6d4f[build-step-build]: Writing FUNCTION_URI to launch
demo/square-function-pod-be6d4f[build-step-build]: Process types:
demo/square-function-pod-be6d4f[build-step-build]: function: node /layers/io.projectriff.node/riff-invoker-node/server.js
demo/square-function-pod-be6d4f[build-step-build]: web: node /layers/io.projectriff.node/riff-invoker-node/server.js
demo/square-function-pod-be6d4f[build-step-export]: Reusing layers from image 'index.docker.io/making/square@sha256:1dfc1ee1cbfab19d48622a500d08ea90e7f7b435e91f689f848f6abdde69b7ff'
demo/square-function-pod-be6d4f[build-step-export]: Exporting layer 'app' with SHA sha256:d4d8e432116aaacfce171e36f6a61fe023c6b8f2de703211a0f961864ccdd704
demo/square-function-pod-be6d4f[build-step-export]: Exporting layer 'config' with SHA sha256:35dd56a033e067000c7e29776bfa008a53c0e89016a2687ba3a7a7c5f24ec664
demo/square-function-pod-be6d4f[build-step-export]: Exporting layer 'launcher' with SHA sha256:2187c4179a3ddaae0e4ad2612c576b3b594927ba15dd610bbf720197209ceaa6
demo/square-function-pod-be6d4f[build-step-export]: Exporting layer 'org.cloudfoundry.node-engine:node' with SHA sha256:b134deffbd0fa78554a4af8c5ae91f0b25731b89b859aec1bcb3e1d169318028
demo/square-function-pod-be6d4f[build-step-export]: Exporting layer 'io.projectriff.node:function' with SHA sha256:4ac850c535b1e8201eed414c45b8e3a60f05945a7343a37344058703bcf33687
demo/square-function-pod-be6d4f[build-step-export]: Exporting layer 'io.projectriff.node:riff-invoker-node' with SHA sha256:52e564b0d41296f736bbfef58c8ef3098266ea1e5971d22b7c17a2f17781a60b
demo/square-function-pod-be6d4f[build-step-export]: *** Images:
demo/square-function-pod-be6d4f[build-step-export]: docker.io/making/square - succeeded
demo/square-function-pod-be6d4f[build-step-export]:
demo/square-function-pod-be6d4f[build-step-export]: *** Digest: sha256:8c700f7950c9c2a0c3d6c3809ce58e3e2ba3183200e54a8a8e09bf5c1e9d44bc
riff function listでFunctionの一覧を確認できます。
$ riff function list -n demo
NAME LATEST IMAGE ARTIFACT HANDLER INVOKER STATUS AGE
square index.docker.io/making/square@sha256:8c700f7950c9c2a0c3d6c3809ce58e3e2ba3183200e54a8a8e09bf5c1e9d44bc square.js <empty> <empty> Ready 2m55s
kubectl get allで作成されたリソースを確認すると、square-function-pod-****というPodがいます。このPodは上記のイメージビルドのOne-Offタスクに使用されました。
この段階では作成されたイメージのコンテナは起動していません。
$ kubectl get all -n demo
NAME READY STATUS RESTARTS AGE
pod/square-function-pod-be6d4f 0/1 Completed 0 2m38s
NAME SUCCEEDED REASON STARTTIME COMPLETIONTIME
build.build.knative.dev/square-function True 2m38s
作成されたイメージのコンテナをデプロイするのがDeployerです。ここではCore RuntimeのDeployerを使用してFunctionをデプロイします。
riff core deployer createコマンドを使用します。--function-refで対象のFunction名を指定します。
riff core deployer create k8s-square \
--function-ref square \
--tail -n demo
次のようなログが出力されます。
Created deployer "k8s-square"
demo/k8s-square-deployer-5877f47f76-qn2f6[handler]: /usr/local/bin/jq
demo/k8s-square-deployer-5877f47f76-qn2f6[handler]: Node started in 126ms
demo/k8s-square-deployer-5877f47f76-qn2f6[handler]: Server starting with request-reply interaction model and payload argument type
demo/k8s-square-deployer-5877f47f76-qn2f6[handler]: HTTP loaded in 82ms
demo/k8s-square-deployer-5877f47f76-qn2f6[handler]: HTTP running on localhost:8080
demo/k8s-square-deployer-5877f47f76-qn2f6[handler]: Function invoker started in 216ms
riff core deployer listでDeployerの一覧を確認できます。
$ riff core deployer list -n demo
NAME TYPE REF SERVICE STATUS AGE
k8s-square function square k8s-square-deployer Ready 107s
作成されたResourceを確認するとDeploymentとServiceが作成されています。
$ kubectl get all -n demo
NAME READY STATUS RESTARTS AGE
pod/k8s-square-deployer-5877f47f76-qn2f6 1/1 Running 0 52s
pod/square-function-pod-be6d4f 0/1 Completed 0 11m
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/k8s-square-deployer ClusterIP 10.100.200.134 <none> 80/TCP 52s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/k8s-square-deployer 1/1 1 1 52s
NAME DESIRED CURRENT READY AGE
replicaset.apps/k8s-square-deployer-5877f47f76 1 1 1 52s
NAME SUCCEEDED REASON STARTTIME COMPLETIONTIME
build.build.knative.dev/square-function True 11m
NAME AGE
clusterbuildtemplate.build.knative.dev/riff-application 24m
clusterbuildtemplate.build.knative.dev/riff-function 24m
ここではPort Forwardを使ってFunctionにリクエストを送ります。
kubectl port-forward service/k8s-square-deployer 8080:80 -n demo
POSTのリクエストを送るとレスポンスが返ります。
$ curl http://localhost:8080/ -w '\n' -H 'Content-Type: text/plain' -d 8
64
DeployerとFunctionを一旦削除します。
riff core deployer delete k8s-square -n demo
riff function delete square -n demo
ローカルのソースコードからデプロイ
次はローカルのソースコードからFunctionイメージを作成します。
先ほどはNode Function Invokerを使ったので、今度はCommand Function Invokerを使用します。
Shell Scriptで標準入力でリクエストを受け付けて標準出力でレスポンスを返すコードを書きます。
cat <<EOF > uppercase.sh
#!/bin/sh
tr '[a-z]' '[A-Z]'
EOF
chmod +x uppercase.sh
riff.tomlに実行するスクリプト名を記述します。
cat <<EOF > riff.toml
artifact = "uppercase.sh"
EOF
riff function createコマンドでFunctionリソースを作成します。今回は--local-pathでローカルのワークスペースを指定します。
riff function create uppercase \
--local-path . \
--tail -n demo
次のようなログが出力されます。
2019/09/22 18:30:01.121534 DEBUG: Pulling image index.docker.io/projectriff/builder:0.4.0-20190815183716-34a63d2fdc243d66
0.4.0-20190815183716-34a63d2fdc243d66: Pulling from projectriff/builder
Digest: sha256:d47deec5fbe0b5c0746c84d7919f9718df6e73a92bd8eeeab9307aa1452bc2a0
Status: Downloaded newer image for projectriff/builder:0.4.0-20190815183716-34a63d2fdc243d66
2019/09/22 18:30:07.025701 DEBUG: Selected run image cnbs/run
2019/09/22 18:30:25.674904 DEBUG: Using build cache volume pack-cache-1a1cfe4bc602.build
2019/09/22 18:30:25.674931 DEBUG: Executing lifecycle version 0.3.0
2019/09/22 18:30:25.674940 DEBUG: ===> DETECTING
[detector] Trying group 1 out of 3 with 3 buildpacks...
[detector] ======== Results ========
[detector] pass: Cloud Foundry OpenJDK Buildpack
[detector] skip: Cloud Foundry Build System Buildpack
[detector] fail: Java Function Buildpack
[detector] Trying group 2 out of 3 with 3 buildpacks...
[detector] ======== Output: NPM Buildpack ========
[detector] no "package.json" found at: /workspace/package.json
[detector] ======== Results ========
[detector] pass: Node Engine Buildpack
[detector] skip: NPM Buildpack
[detector] fail: Node Function Buildpack
[detector] Trying group 3 out of 3 with 1 buildpacks...
[detector] ======== Results ========
[detector] pass: Command Function Buildpack
2019/09/22 18:30:27.268614 DEBUG: ===> RESTORING
[restorer] Cache '/cache': metadata not found, nothing to restore
2019/09/22 18:30:28.978805 DEBUG: ===> ANALYZING
[analyzer] Image 'index.docker.io/making/uppercase:latest' not found
2019/09/22 18:30:33.994839 DEBUG: ===> BUILDING
[builder] -----> Command Function Buildpack 0.0.9
[builder] -----> riff Command Invoker 0.0.8: Contributing to layer
[builder] Reusing cached download from buildpack
[builder] Expanding /buildpacks/io.projectriff.command/0.0.9/dependency-cache/cf475eae3043cf7dc0818b5ccd70f99c9542d798160fa3965c8506787a70e8d3/command-function-invoker-linux-amd64-0.0.8.tgz to /layers/io.projectriff.command/riff-invoker-command
[builder] -----> Command uppercase.sh: Contributing to layer
[builder] Writing FUNCTION_URI to launch
[builder] -----> Process types:
[builder] function: /layers/io.projectriff.command/riff-invoker-command/command-function-invoker
[builder] web: /layers/io.projectriff.command/riff-invoker-command/command-function-invoker
[builder]
2019/09/22 18:30:35.523936 DEBUG: ===> EXPORTING
[exporter] Exporting layer 'app' with SHA sha256:33998bf4c6883847841afb9bc79a3c694869bbc91af3e42a20a85a2b0b49e586
[exporter] Exporting layer 'config' with SHA sha256:cff1d33f365361801eb9634382be712ef7c6bfe123d4f9319ef1817e38151fe5
[exporter] Exporting layer 'launcher' with SHA sha256:2187c4179a3ddaae0e4ad2612c576b3b594927ba15dd610bbf720197209ceaa6
[exporter] Exporting layer 'io.projectriff.command:function' with SHA sha256:bf0db55d0b05afe373cbbaf21e0551b7306debf1d6c5920efdb786822f2e4009
[exporter] Exporting layer 'io.projectriff.command:riff-invoker-command' with SHA sha256:6fda89f4834e6dc8cceb2e0f8c1dc9b8fe61e6ab1a921a7adfcc69ea2200a1c6
[exporter] *** Images:
[exporter] index.docker.io/making/uppercase:latest - succeeded
[exporter]
[exporter] *** Digest: sha256:0fe98080bc0d0300f0fc5b50f235df0436215a6c8ec80f288d21cb8fddf8b267
2019/09/22 18:30:45.096203 DEBUG: ===> CACHING
[cacher] Caching layer 'io.projectriff.command:riff-invoker-command' with SHA sha256:6fda89f4834e6dc8cceb2e0f8c1dc9b8fe61e6ab1a921a7adfcc69ea2200a1c6
Created function "uppercase"
riff core deployer createコマンドでFunctionをデプロイします。
riff core deployer create uppercase \
--function-ref uppercase \
--tail -n demo
作成されたResourceを確認します。今回はローカルでイメージをビルドしたので、ビルド用のPodはできていません。
$ kubectl get all -n demo
NAME READY STATUS RESTARTS AGE
pod/uppercase-deployer-cc4845856-46jkc 1/1 Running 0 2m13s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/uppercase-deployer ClusterIP 10.100.200.243 <none> 80/TCP 2m13s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/uppercase-deployer 1/1 1 1 2m13s
NAME DESIRED CURRENT READY AGE
replicaset.apps/uppercase-deployer-cc4845856 1 1 1 2m13s
NAME AGE
clusterbuildtemplate.build.knative.dev/riff-application 62m
clusterbuildtemplate.build.knative.dev/riff-function 62m
Port Forwardを使ってFunctionにリクエストを送ります。
kubectl port-forward service/uppercase-deployer 8080:80 -n demo
$ curl http://localhost:8080/ -w '\n' -H 'Content-Type: text/plain' -d 'hello world'
HELLO WORLD
DeployerとFunctionを一旦削除します。
riff core deployer delete uppercase -n demo
riff function delete uppercase -n demo
Applicationのデプロイ
次にApplicationをデプロイします。これはFunctionとは関係なく、普通のWebアプリケーションです。
Github上のSpring Musicをデプロイしてみます。
Applicationのデプロイにはriff application createコマンドを使用します。
riff application create spring-music \
--git-repo https://github.com/cloudfoundry-samples/spring-music \
--tail -n demo
次のようなログが出力され、アプリケーションのコンテナイメージが作成されます。Cloud FoundryのCloud Native Buildpacksが使用されています。
Created application "spring-music"
demo/spring-music-application-pod-d27e3d[build-step-build]:
demo/spring-music-application-pod-d27e3d[build-step-build]: Cloud Foundry OpenJDK Buildpack 1.0.0-M9
demo/spring-music-application-pod-d27e3d[build-step-build]: OpenJDK JDK 11.0.3: Contributing to layer
demo/spring-music-application-pod-d27e3d[build-step-build]: Downloading from https://github.com/AdoptOpenJDK/openjdk11-binaries/releases/download/jdk-11.0.3%2B7/OpenJDK11U-jdk_x64_linux_hotspot_11.0.3_7.tar.gz
demo/spring-music-application-pod-d27e3d[build-step-build]: Verifying checksum
demo/spring-music-application-pod-d27e3d[build-step-build]: Expanding to /layers/org.cloudfoundry.openjdk/openjdk-jdk
demo/spring-music-application-pod-d27e3d[build-step-build]: Writing JAVA_HOME to build
demo/spring-music-application-pod-d27e3d[build-step-build]: Writing JDK_HOME to build
demo/spring-music-application-pod-d27e3d[build-step-build]: OpenJDK JRE 11.0.3: Contributing to layer
demo/spring-music-application-pod-d27e3d[build-step-build]: Downloading from https://github.com/AdoptOpenJDK/openjdk11-binaries/releases/download/jdk-11.0.3%2B7/OpenJDK11U-jre_x64_linux_hotspot_11.0.3_7.tar.gz
demo/spring-music-application-pod-d27e3d[build-step-build]: Verifying checksum
demo/spring-music-application-pod-d27e3d[build-step-build]: Expanding to /layers/org.cloudfoundry.openjdk/openjdk-jre
demo/spring-music-application-pod-d27e3d[build-step-build]: Writing JAVA_HOME to shared
demo/spring-music-application-pod-d27e3d[build-step-build]:
demo/spring-music-application-pod-d27e3d[build-step-build]: Cloud Foundry Build System Buildpack 1.0.0-M9
demo/spring-music-application-pod-d27e3d[build-step-build]: Using wrapper
demo/spring-music-application-pod-d27e3d[build-step-build]: Linking Cache to /home/cnb/.gradle
demo/spring-music-application-pod-d27e3d[build-step-build]: Compiled Application: Contributing to layer
demo/spring-music-application-pod-d27e3d[build-step-build]: Downloading https://services.gradle.org/distributions/gradle-5.6-bin.zip
demo/spring-music-application-pod-d27e3d[build-step-build]: .........................................................................................
demo/spring-music-application-pod-d27e3d[build-step-build]: Unzipping /home/cnb/.gradle/wrapper/dists/gradle-5.6-bin/ez4di095eg6cfomw17rqphhsg/gradle-5.6-bin.zip to /home/cnb/.gradle/wrapper/dists/gradle-5.6-bin/ez4di095eg6cfomw17rqphhsg
demo/spring-music-application-pod-d27e3d[build-step-build]: Set executable permissions for: /home/cnb/.gradle/wrapper/dists/gradle-5.6-bin/ez4di095eg6cfomw17rqphhsg/gradle-5.6/bin/gradle
demo/spring-music-application-pod-d27e3d[build-step-build]:
demo/spring-music-application-pod-d27e3d[build-step-build]: Welcome to Gradle 5.6!
demo/spring-music-application-pod-d27e3d[build-step-build]:
demo/spring-music-application-pod-d27e3d[build-step-build]: Here are the highlights of this release:
demo/spring-music-application-pod-d27e3d[build-step-build]: - Incremental Groovy compilation
demo/spring-music-application-pod-d27e3d[build-step-build]: - Groovy compile avoidance
demo/spring-music-application-pod-d27e3d[build-step-build]: - Test fixtures for Java projects
demo/spring-music-application-pod-d27e3d[build-step-build]: - Manage plugin versions via settings script
demo/spring-music-application-pod-d27e3d[build-step-build]:
demo/spring-music-application-pod-d27e3d[build-step-build]: For more details see https://docs.gradle.org/5.6/release-notes.html
demo/spring-music-application-pod-d27e3d[build-step-build]:
demo/spring-music-application-pod-d27e3d[build-step-build]: Starting a Gradle Daemon (subsequent builds will be faster)
demo/spring-music-application-pod-d27e3d[build-step-build]: > Task :compileJava
demo/spring-music-application-pod-d27e3d[build-step-build]: Note: /workspace/src/main/java/org/cloudfoundry/samples/music/config/SpringApplicationContextInitializer.java uses or overrides a deprecated API.
demo/spring-music-application-pod-d27e3d[build-step-build]: Note: Recompile with -Xlint:deprecation for details.
demo/spring-music-application-pod-d27e3d[build-step-build]:
demo/spring-music-application-pod-d27e3d[build-step-build]: > Task :processResources
demo/spring-music-application-pod-d27e3d[build-step-build]: > Task :classes
demo/spring-music-application-pod-d27e3d[build-step-build]: > Task :bootJar
demo/spring-music-application-pod-d27e3d[build-step-build]: > Task :jar SKIPPED
demo/spring-music-application-pod-d27e3d[build-step-build]: > Task :assemble
demo/spring-music-application-pod-d27e3d[build-step-build]: > Task :check
demo/spring-music-application-pod-d27e3d[build-step-build]: > Task :build
demo/spring-music-application-pod-d27e3d[build-step-build]:
demo/spring-music-application-pod-d27e3d[build-step-build]: BUILD SUCCESSFUL in 1m 40s
demo/spring-music-application-pod-d27e3d[build-step-build]: 3 actionable tasks: 3 executed
demo/spring-music-application-pod-d27e3d[build-step-build]: Removing source code
demo/spring-music-application-pod-d27e3d[build-step-build]:
demo/spring-music-application-pod-d27e3d[build-step-build]: Cloud Foundry JVM Application Buildpack 1.0.0-M9
demo/spring-music-application-pod-d27e3d[build-step-build]: Executable JAR: Contributing to layer
demo/spring-music-application-pod-d27e3d[build-step-build]: Writing CLASSPATH to shared
demo/spring-music-application-pod-d27e3d[build-step-build]: Process types:
demo/spring-music-application-pod-d27e3d[build-step-build]: executable-jar: java -cp $CLASSPATH $JAVA_OPTS org.springframework.boot.loader.JarLauncher
demo/spring-music-application-pod-d27e3d[build-step-build]: task: java -cp $CLASSPATH $JAVA_OPTS org.springframework.boot.loader.JarLauncher
demo/spring-music-application-pod-d27e3d[build-step-build]: web: java -cp $CLASSPATH $JAVA_OPTS org.springframework.boot.loader.JarLauncher
demo/spring-music-application-pod-d27e3d[build-step-build]:
demo/spring-music-application-pod-d27e3d[build-step-build]: Cloud Foundry Spring Boot Buildpack 1.0.0-M9
demo/spring-music-application-pod-d27e3d[build-step-build]: Spring Boot 2.1.7.RELEASE: Contributing to layer
demo/spring-music-application-pod-d27e3d[build-step-build]: Writing CLASSPATH to shared
demo/spring-music-application-pod-d27e3d[build-step-build]: Process types:
demo/spring-music-application-pod-d27e3d[build-step-build]: spring-boot: java -cp $CLASSPATH $JAVA_OPTS org.cloudfoundry.samples.music.Application
demo/spring-music-application-pod-d27e3d[build-step-build]: task: java -cp $CLASSPATH $JAVA_OPTS org.cloudfoundry.samples.music.Application
demo/spring-music-application-pod-d27e3d[build-step-build]: web: java -cp $CLASSPATH $JAVA_OPTS org.cloudfoundry.samples.music.Application
demo/spring-music-application-pod-d27e3d[build-step-build]:
demo/spring-music-application-pod-d27e3d[build-step-build]: Cloud Foundry Spring Auto-reconfiguration Buildpack 1.0.0-M9
demo/spring-music-application-pod-d27e3d[build-step-build]: Spring Auto-reconfiguration 2.7.0: Contributing to layer
demo/spring-music-application-pod-d27e3d[build-step-build]: Downloading from https://repo.spring.io/release/org/cloudfoundry/java-buildpack-auto-reconfiguration/2.7.0.RELEASE/java-buildpack-auto-reconfiguration-2.7.0.RELEASE.jar
demo/spring-music-application-pod-d27e3d[build-step-build]: Verifying checksum
demo/spring-music-application-pod-d27e3d[build-step-build]: Copying to /layers/org.cloudfoundry.springautoreconfiguration/auto-reconfiguration
demo/spring-music-application-pod-d27e3d[build-step-build]: Writing CLASSPATH to launch
demo/spring-music-application-pod-d27e3d[build-step-export]: Exporting layer 'app' with SHA sha256:c00d7d8b7a121dcaf619cfbb4fffdd39060481a52fde95e4dee114ee1f486d60
demo/spring-music-application-pod-d27e3d[build-step-export]: Exporting layer 'config' with SHA sha256:4999a21b40fedd5dc2bb4f573458dc462ce8bc300d079ff488115489730cdfbf
demo/spring-music-application-pod-d27e3d[build-step-export]: Exporting layer 'launcher' with SHA sha256:2187c4179a3ddaae0e4ad2612c576b3b594927ba15dd610bbf720197209ceaa6
demo/spring-music-application-pod-d27e3d[build-step-export]: Exporting layer 'org.cloudfoundry.openjdk:openjdk-jre' with SHA sha256:b4c9e176f3e59c28939bcbdf3cd8d8bcbd25dd396cffc831c50400bda14c8498
demo/spring-music-application-pod-d27e3d[build-step-export]: Exporting layer 'org.cloudfoundry.jvmapplication:executable-jar' with SHA sha256:4504416ffcfe48c04b303f209a71360ef054d759b7d5b7deae53d34542c066a2
demo/spring-music-application-pod-d27e3d[build-step-export]: Exporting layer 'org.cloudfoundry.springboot:spring-boot' with SHA sha256:7ea0159184f4ff24811b72101f44fe578adfea2215294889b5246983b9f46eb3
demo/spring-music-application-pod-d27e3d[build-step-export]: Exporting layer 'org.cloudfoundry.springautoreconfiguration:auto-reconfiguration' with SHA sha256:41658755805c0452025f24e92ea9c26f736c0661c478e8cd69f5d4b6bf9280b9
demo/spring-music-application-pod-d27e3d[build-step-export]: *** Images:
demo/spring-music-application-pod-d27e3d[build-step-export]: docker.io/making/spring-music - succeeded
demo/spring-music-application-pod-d27e3d[build-step-export]:
demo/spring-music-application-pod-d27e3d[build-step-export]: *** Digest: sha256:e47d41cb86f9884dea156c2e5f9dde9bda2ed2673d2bfe87aea6d0429d647c9c
demo/spring-music-application-pod-d27e3d[build-step-cache]: Caching layer 'org.cloudfoundry.openjdk:23cded2b43261016f0f246c85c8948d4a9b7f2d44988f75dad69723a7a526094' with SHA sha256:ec111da00c681fb8526b1f0b457440e58f13cd0fef858d97f6b94b278c452ce7
demo/spring-music-application-pod-d27e3d[build-step-cache]: Caching layer 'org.cloudfoundry.openjdk:d2df8bc799b09c8375f79bf646747afac3d933bb1f65de71d6c78e7466ff8fe4' with SHA sha256:4193b3e9512f28b093c1f6f8910882dd3f8e7f99f525b181a9d04c8d85c5290e
demo/spring-music-application-pod-d27e3d[build-step-cache]: Caching layer 'org.cloudfoundry.openjdk:openjdk-jdk' with SHA sha256:f7671f6e5e58e10a45dd56e8a8d0e3e31d4a029e0c655f217bf262ca13ce28db
demo/spring-music-application-pod-d27e3d[build-step-cache]: Caching layer 'org.cloudfoundry.buildsystem:build-system-cache' with SHA sha256:993b4415c0a86ec6c7217fa9dceeaae52ce036f9e6c2856f4e7625b55f806ce8
demo/spring-music-application-pod-d27e3d[build-step-cache]: Caching layer 'org.cloudfoundry.jvmapplication:executable-jar' with SHA sha256:4504416ffcfe48c04b303f209a71360ef054d759b7d5b7deae53d34542c066a2
demo/spring-music-application-pod-d27e3d[build-step-cache]: Caching layer 'org.cloudfoundry.springboot:spring-boot' with SHA sha256:7ea0159184f4ff24811b72101f44fe578adfea2215294889b5246983b9f46eb3
demo/spring-music-application-pod-d27e3d[build-step-cache]: Caching layer 'org.cloudfoundry.springautoreconfiguration:0d524877db7344ec34620f7e46254053568292f5ce514f74e3a0e9b2dbfc338b' with SHA sha256:b230347b1d507372183a527a7915085715aaddafe61a9de325fff47f5f8dcc30
riff application listでApplicationの一覧を確認できます。
$ riff application list -n demo
NAME LATEST IMAGE STATUS AGE
spring-music index.docker.io/making/spring-music@sha256:e47d41cb86f9884dea156c2e5f9dde9bda2ed2673d2bfe87aea6d0429d647c9c Ready 5m1s
riff core deployer createコマンドでApplicationをデプロイします。今回は--application-refで対象のApplication名を指定します。
riff core deployer create spring-music \
--application-ref spring-music \
--tail -n demo
次のようなログが出力されます。
Created deployer "spring-music"
demo/spring-music-deployer-644c9489fd-f8p26[handler]:
demo/spring-music-deployer-644c9489fd-f8p26[handler]: . ____ _ __ _ _
demo/spring-music-deployer-644c9489fd-f8p26[handler]: /\\ / ___'_ __ _ _(_)_ __ __ _ \ \ \ \
demo/spring-music-deployer-644c9489fd-f8p26[handler]: ( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \
demo/spring-music-deployer-644c9489fd-f8p26[handler]: \\/ ___)| |_)| | | | | || (_| | ) ) ) )
demo/spring-music-deployer-644c9489fd-f8p26[handler]: ' |____| .__|_| |_|_| |_\__, | / / / /
demo/spring-music-deployer-644c9489fd-f8p26[handler]: =========|_|==============|___/=/_/_/_/
demo/spring-music-deployer-644c9489fd-f8p26[handler]: :: Spring Boot :: (v2.1.7.RELEASE)
demo/spring-music-deployer-644c9489fd-f8p26[handler]:
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:25.796 WARN 1 --- [ main] pertySourceApplicationContextInitializer : Skipping 'cloud' property source addition because not in a cloud
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:25.800 WARN 1 --- [ main] nfigurationApplicationContextInitializer : Skipping reconfiguration because not in a cloud
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:26.199 INFO 1 --- [ main] o.c.samples.music.Application : Starting Application on spring-music-deployer-644c9489fd-f8p26 with PID 1 (/workspace/BOOT-INF/classes started by cnb in /workspace)
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:26.211 INFO 1 --- [ main] o.c.samples.music.Application : No active profile set, falling back to default profiles: default
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:27.662 INFO 1 --- [ main] .s.d.r.c.RepositoryConfigurationDelegate : Multiple Spring Data modules found, entering strict repository configuration mode!
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:27.667 INFO 1 --- [ main] .s.d.r.c.RepositoryConfigurationDelegate : Bootstrapping Spring Data repositories in DEFAULT mode.
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:27.855 INFO 1 --- [ main] .s.d.r.c.RepositoryConfigurationDelegate : Finished Spring Data repository scanning in 171ms. Found 1 repository interfaces.
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:28.552 INFO 1 --- [ main] trationDelegate$BeanPostProcessorChecker : Bean 'org.springframework.transaction.annotation.ProxyTransactionManagementConfiguration' of type [org.springframework.transaction.annotation.ProxyTransactionManagementConfiguration$$EnhancerBySpringCGLIB$$18c9ff22] is not eligible for getting processed by all BeanPostProcessors (for example: not eligible for auto-proxying)
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:28.923 INFO 1 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat initialized with port(s): 8080 (http)
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:28.970 INFO 1 --- [ main] o.apache.catalina.core.StandardService : Starting service [Tomcat]
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:28.974 INFO 1 --- [ main] org.apache.catalina.core.StandardEngine : Starting Servlet engine: [Apache Tomcat/9.0.22]
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:29.143 INFO 1 --- [ main] o.a.c.c.C.[Tomcat].[localhost].[/] : Initializing Spring embedded WebApplicationContext
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:29.144 INFO 1 --- [ main] o.s.web.context.ContextLoader : Root WebApplicationContext: initialization completed in 2847 ms
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:29.643 INFO 1 --- [ main] com.zaxxer.hikari.HikariDataSource : HikariPool-1 - Starting...
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:29.940 INFO 1 --- [ main] com.zaxxer.hikari.HikariDataSource : HikariPool-1 - Start completed.
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:30.031 INFO 1 --- [ main] o.hibernate.jpa.internal.util.LogHelper : HHH000204: Processing PersistenceUnitInfo [
demo/spring-music-deployer-644c9489fd-f8p26[handler]: name: default
demo/spring-music-deployer-644c9489fd-f8p26[handler]: ...]
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:30.107 INFO 1 --- [ main] org.hibernate.Version : HHH000412: Hibernate Core {5.3.10.Final}
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:30.113 INFO 1 --- [ main] org.hibernate.cfg.Environment : HHH000206: hibernate.properties not found
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:30.328 INFO 1 --- [ main] o.hibernate.annotations.common.Version : HCANN000001: Hibernate Commons Annotations {5.0.4.Final}
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:30.481 INFO 1 --- [ main] org.hibernate.dialect.Dialect : HHH000400: Using dialect: org.hibernate.dialect.H2Dialect
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:31.159 INFO 1 --- [ main] o.h.t.schema.internal.SchemaCreatorImpl : HHH000476: Executing import script 'org.hibernate.tool.schema.internal.exec.ScriptSourceInputNonExistentImpl@5b72b13a'
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:31.162 INFO 1 --- [ main] j.LocalContainerEntityManagerFactoryBean : Initialized JPA EntityManagerFactory for persistence unit 'default'
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:31.701 INFO 1 --- [ main] o.s.s.concurrent.ThreadPoolTaskExecutor : Initializing ExecutorService 'applicationTaskExecutor'
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:31.756 WARN 1 --- [ main] aWebConfiguration$JpaWebMvcConfiguration : spring.jpa.open-in-view is enabled by default. Therefore, database queries may be performed during view rendering. Explicitly configure spring.jpa.open-in-view to disable this warning
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:31.804 INFO 1 --- [ main] o.s.b.a.w.s.WelcomePageHandlerMapping : Adding welcome page: class path resource [static/index.html]
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:32.131 INFO 1 --- [ main] o.s.b.a.e.web.EndpointLinksResolver : Exposing 15 endpoint(s) beneath base path '/actuator'
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:32.291 INFO 1 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat started on port(s): 8080 (http) with context path ''
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:32.299 INFO 1 --- [ main] o.c.samples.music.Application : Started Application in 7.343 seconds (JVM running for 8.328)
demo/spring-music-deployer-644c9489fd-f8p26[handler]: 2019-09-23 08:12:32.358 INFO 1 --- [ main] o.h.h.i.QueryTranslatorFactoryInitiator : HHH000397: Using ASTQueryTranslatorFactory
riff core deployer listでDeployerの一覧を確認できます。TYPEがapplicationになっています。
$ riff core deployer list -n demo
NAME TYPE REF SERVICE STATUS AGE
spring-music application spring-music spring-music-deployer Ready 73s
作成されたResourceを確認します。
$ kubectl get all -n demo
NAME READY STATUS RESTARTS AGE
pod/spring-music-application-pod-d27e3d 0/1 Completed 0 7m16s
pod/spring-music-deployer-644c9489fd-f8p26 1/1 Running 0 95s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/spring-music-deployer ClusterIP 10.100.200.214 <none> 80/TCP 95s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/spring-music-deployer 1/1 1 1 95s
NAME DESIRED CURRENT READY AGE
replicaset.apps/spring-music-deployer-644c9489fd 1 1 1 95s
NAME SUCCEEDED REASON STARTTIME COMPLETIONTIME
build.build.knative.dev/spring-music-application True 7m16s
NAME AGE
clusterbuildtemplate.build.knative.dev/riff-application 23h
clusterbuildtemplate.build.knative.dev/riff-function 23h
Port Forwardを行います。
kubectl port-forward service/spring-music-deployer 8080:80 -n demo

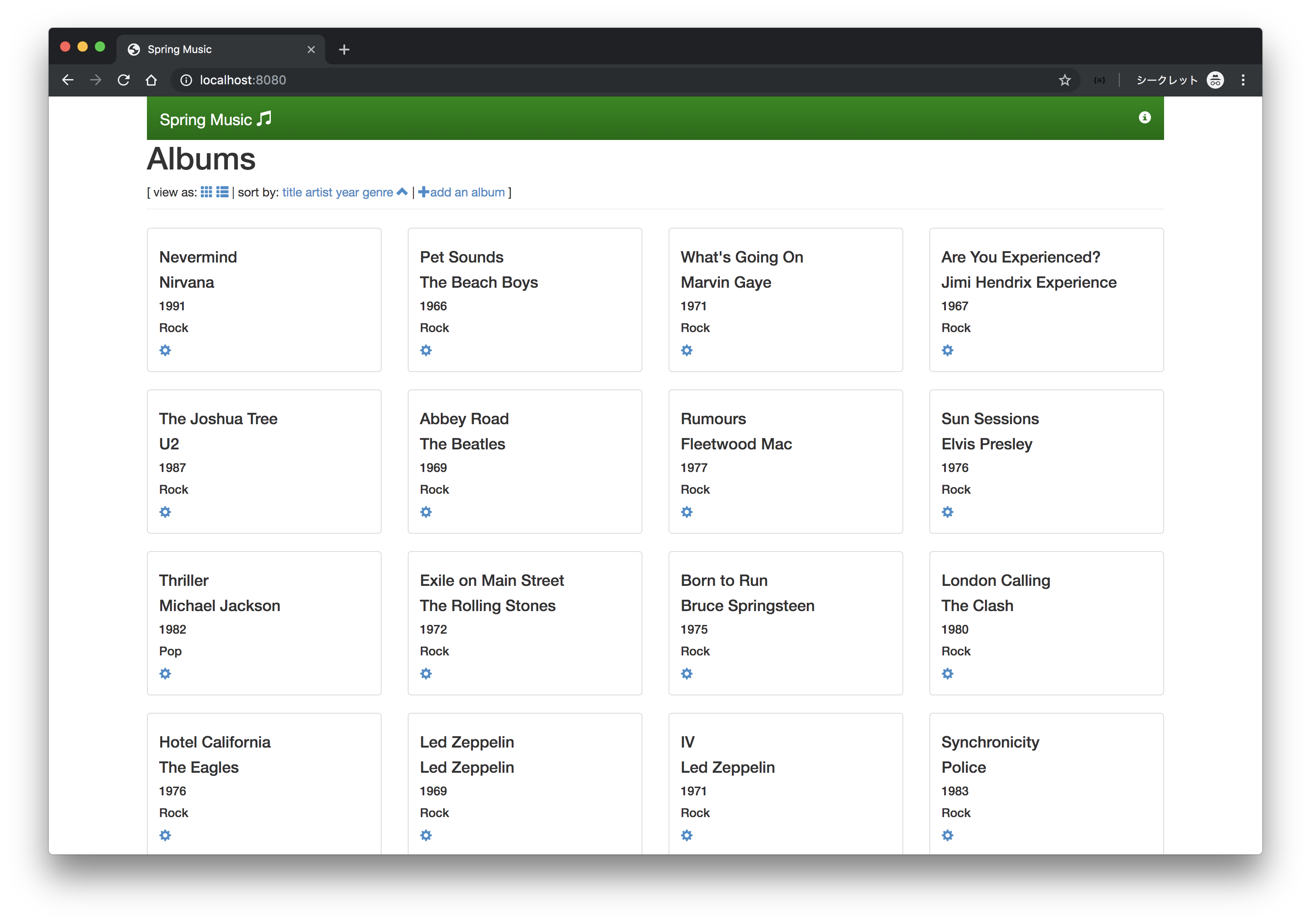

ブラウザでlocalhost:8080にアクセスすると画面が表示されます👏
DeployerとApplicationを削除します。
riff core deployer delete spring-music -n demo
riff application delete spring-music -n demo
riff 0.4.0をKnativeなしで試しました。 次のバージョンではStreaming Runtimeも入ってくると思われるので楽しみです。
成熟すればKubernetes上のPlatformとして面白い存在になると思います。
