本記事は、Tanzu Kubernetes Grid (TKG) 1.2をAWSにインストールするメモです。
Table of contents
- CLIのインストール
- SSH Keyの作成
- config.yamlの作成
- AWS CloudFormation Stackの作成
- Management ClusterをAWSに作成
- Workload Clusterを作成
- Workload Clusterを削除
- Workload ClusterをManagement Clusterと同じVPC/Subnetに作成
- Workload Clusterのスケールアウト
- Clusterの削除
CLIのインストール
から
- VMware Tanzu Kubernetes Grid CLI for Mac
をダウンロードして次のようにインストールしてください。
tar xzvf tkg-darwin-amd64-v1.2.0-vmware.1.tar.gz
mv tkg/tkg-darwin-amd64-v1.2.0+vmware.1 /usr/local/bin/tkg
chmod +x /usr/local/bin/tkg
その他、Dockerが必要です。
次のバージョンで動作確認しています。
$ tkg version
Client:
Version: v1.2.0
Git commit: 05b233e75d6e40659247a67750b3e998c2d990a5
次のコマンドを実行すると設定ファイル用のディレクトリが生成されます。
tkg get management-cluster
次のようなディレクトリが作成します。
$ find ~/.tkg
/Users/toshiaki/.tkg
/Users/toshiaki/.tkg/bom
/Users/toshiaki/.tkg/bom/bom-1.1.2+vmware.1.yaml
/Users/toshiaki/.tkg/bom/bom-1.18.8+vmware.1.yaml
/Users/toshiaki/.tkg/bom/bom-tkg-1.0.0.yaml
/Users/toshiaki/.tkg/bom/bom-1.2.0+vmware.1.yaml
/Users/toshiaki/.tkg/bom/bom-1.17.6+vmware.1.yaml
/Users/toshiaki/.tkg/bom/bom-1.17.11+vmware.1.yaml
/Users/toshiaki/.tkg/bom/bom-1.1.0+vmware.1.yaml
/Users/toshiaki/.tkg/bom/bom-1.17.9+vmware.1.yaml
/Users/toshiaki/.tkg/bom/bom-1.1.3+vmware.1.yaml
/Users/toshiaki/.tkg/providers
/Users/toshiaki/.tkg/providers/infrastructure-azure
/Users/toshiaki/.tkg/providers/infrastructure-azure/v0.4.8
/Users/toshiaki/.tkg/providers/infrastructure-azure/v0.4.8/infrastructure-components.yaml
/Users/toshiaki/.tkg/providers/infrastructure-azure/v0.4.8/cluster-template-definition-prod.yaml
/Users/toshiaki/.tkg/providers/infrastructure-azure/v0.4.8/cluster-template-definition-dev.yaml
/Users/toshiaki/.tkg/providers/infrastructure-azure/v0.4.8/ytt
/Users/toshiaki/.tkg/providers/infrastructure-azure/v0.4.8/ytt/overlay.yaml
/Users/toshiaki/.tkg/providers/infrastructure-azure/v0.4.8/ytt/base-template.yaml
/Users/toshiaki/.tkg/providers/infrastructure-azure/ytt
/Users/toshiaki/.tkg/providers/infrastructure-azure/ytt/azure-overlay.yaml
/Users/toshiaki/.tkg/providers/control-plane-kubeadm
/Users/toshiaki/.tkg/providers/control-plane-kubeadm/v0.3.10
/Users/toshiaki/.tkg/providers/control-plane-kubeadm/v0.3.10/control-plane-components.yaml
/Users/toshiaki/.tkg/providers/providers.md5sum
/Users/toshiaki/.tkg/providers/infrastructure-vsphere
/Users/toshiaki/.tkg/providers/infrastructure-vsphere/v0.7.1
/Users/toshiaki/.tkg/providers/infrastructure-vsphere/v0.7.1/infrastructure-components.yaml
/Users/toshiaki/.tkg/providers/infrastructure-vsphere/v0.7.1/cluster-template-definition-prod.yaml
/Users/toshiaki/.tkg/providers/infrastructure-vsphere/v0.7.1/cluster-template-definition-dev.yaml
/Users/toshiaki/.tkg/providers/infrastructure-vsphere/v0.7.1/ytt
/Users/toshiaki/.tkg/providers/infrastructure-vsphere/v0.7.1/ytt/overlay.yaml
/Users/toshiaki/.tkg/providers/infrastructure-vsphere/v0.7.1/ytt/add_csi.yaml
/Users/toshiaki/.tkg/providers/infrastructure-vsphere/v0.7.1/ytt/csi-vsphere.lib.txt
/Users/toshiaki/.tkg/providers/infrastructure-vsphere/v0.7.1/ytt/csi.lib.yaml
/Users/toshiaki/.tkg/providers/infrastructure-vsphere/v0.7.1/ytt/base-template.yaml
/Users/toshiaki/.tkg/providers/infrastructure-vsphere/ytt
/Users/toshiaki/.tkg/providers/infrastructure-vsphere/ytt/vsphere-overlay.yaml
/Users/toshiaki/.tkg/providers/cluster-api
/Users/toshiaki/.tkg/providers/cluster-api/v0.3.10
/Users/toshiaki/.tkg/providers/cluster-api/v0.3.10/core-components.yaml
/Users/toshiaki/.tkg/providers/config.yaml
/Users/toshiaki/.tkg/providers/bootstrap-kubeadm
/Users/toshiaki/.tkg/providers/bootstrap-kubeadm/v0.3.10
/Users/toshiaki/.tkg/providers/bootstrap-kubeadm/v0.3.10/bootstrap-components.yaml
/Users/toshiaki/.tkg/providers/infrastructure-aws
/Users/toshiaki/.tkg/providers/infrastructure-aws/v0.5.5
/Users/toshiaki/.tkg/providers/infrastructure-aws/v0.5.5/infrastructure-components.yaml
/Users/toshiaki/.tkg/providers/infrastructure-aws/v0.5.5/cluster-template-definition-prod.yaml
/Users/toshiaki/.tkg/providers/infrastructure-aws/v0.5.5/cluster-template-definition-dev.yaml
/Users/toshiaki/.tkg/providers/infrastructure-aws/v0.5.5/ytt
/Users/toshiaki/.tkg/providers/infrastructure-aws/v0.5.5/ytt/overlay.yaml
/Users/toshiaki/.tkg/providers/infrastructure-aws/v0.5.5/ytt/base-template.yaml
/Users/toshiaki/.tkg/providers/infrastructure-aws/ytt
/Users/toshiaki/.tkg/providers/infrastructure-aws/ytt/aws-overlay.yaml
/Users/toshiaki/.tkg/providers/config_default.yaml
/Users/toshiaki/.tkg/providers/infrastructure-docker
/Users/toshiaki/.tkg/providers/infrastructure-docker/v0.3.10
/Users/toshiaki/.tkg/providers/infrastructure-docker/v0.3.10/infrastructure-components.yaml
/Users/toshiaki/.tkg/providers/infrastructure-docker/v0.3.10/metadata.yaml
/Users/toshiaki/.tkg/providers/infrastructure-docker/v0.3.10/cluster-template-definition-prod.yaml
/Users/toshiaki/.tkg/providers/infrastructure-docker/v0.3.10/cluster-template-definition-dev.yaml
/Users/toshiaki/.tkg/providers/infrastructure-docker/v0.3.10/ytt
/Users/toshiaki/.tkg/providers/infrastructure-docker/v0.3.10/ytt/overlay.yaml
/Users/toshiaki/.tkg/providers/infrastructure-docker/v0.3.10/ytt/base-template.yaml
/Users/toshiaki/.tkg/providers/infrastructure-docker/ytt
/Users/toshiaki/.tkg/providers/infrastructure-docker/ytt/docker-overlay.yaml
/Users/toshiaki/.tkg/providers/infrastructure-tkg-service-vsphere
/Users/toshiaki/.tkg/providers/infrastructure-tkg-service-vsphere/v1.0.0
/Users/toshiaki/.tkg/providers/infrastructure-tkg-service-vsphere/v1.0.0/cluster-template-definition-prod.yaml
/Users/toshiaki/.tkg/providers/infrastructure-tkg-service-vsphere/v1.0.0/cluster-template-definition-dev.yaml
/Users/toshiaki/.tkg/providers/infrastructure-tkg-service-vsphere/v1.0.0/ytt
/Users/toshiaki/.tkg/providers/infrastructure-tkg-service-vsphere/v1.0.0/ytt/overlay.yaml
/Users/toshiaki/.tkg/providers/infrastructure-tkg-service-vsphere/v1.0.0/ytt/base-template.yaml
/Users/toshiaki/.tkg/providers/infrastructure-tkg-service-vsphere/ytt
/Users/toshiaki/.tkg/providers/infrastructure-tkg-service-vsphere/ytt/tkg-service-vsphere-overlay.yaml
/Users/toshiaki/.tkg/providers/ytt
/Users/toshiaki/.tkg/providers/ytt/02_addons
/Users/toshiaki/.tkg/providers/ytt/02_addons/cni
/Users/toshiaki/.tkg/providers/ytt/02_addons/cni/antrea
/Users/toshiaki/.tkg/providers/ytt/02_addons/cni/antrea/antrea.lib.yaml
/Users/toshiaki/.tkg/providers/ytt/02_addons/cni/antrea/antrea_overlay.lib.yaml
/Users/toshiaki/.tkg/providers/ytt/02_addons/cni/add_cni.yaml
/Users/toshiaki/.tkg/providers/ytt/02_addons/cni/calico
/Users/toshiaki/.tkg/providers/ytt/02_addons/cni/calico/calico_overlay.lib.yaml
/Users/toshiaki/.tkg/providers/ytt/02_addons/cni/calico/calico.lib.yaml
/Users/toshiaki/.tkg/providers/ytt/02_addons/metadata
/Users/toshiaki/.tkg/providers/ytt/02_addons/metadata/add_cluster_metadata.yaml
/Users/toshiaki/.tkg/providers/ytt/01_plans
/Users/toshiaki/.tkg/providers/ytt/01_plans/dev.yaml
/Users/toshiaki/.tkg/providers/ytt/01_plans/prod.yaml
/Users/toshiaki/.tkg/providers/ytt/01_plans/oidc.yaml
/Users/toshiaki/.tkg/providers/ytt/03_customizations
/Users/toshiaki/.tkg/providers/ytt/03_customizations/filter.yaml
/Users/toshiaki/.tkg/providers/ytt/03_customizations/remove_mhc.yaml
/Users/toshiaki/.tkg/providers/ytt/03_customizations/add_sc.yaml
/Users/toshiaki/.tkg/providers/ytt/03_customizations/registry_skip_tls_verify.yaml
/Users/toshiaki/.tkg/providers/ytt/lib
/Users/toshiaki/.tkg/providers/ytt/lib/validate.star
/Users/toshiaki/.tkg/providers/ytt/lib/helpers.star
/Users/toshiaki/.tkg/.providers.zip.lock
/Users/toshiaki/.tkg/config.yaml
/Users/toshiaki/.tkg/.boms.lock
SSH Keyの作成
TKGで作成されるVM用のSSH Keyを作成します。
export AWS_ACCESS_KEY_ID=****
export AWS_SECRET_ACCESS_KEY=****
export AWS_DEFAULT_REGION=ap-northeast-1
export AWS_SSH_KEY_NAME=tkg-sandbox
aws ec2 create-key-pair --key-name ${AWS_SSH_KEY_NAME} --output json | jq .KeyMaterial -r > ${AWS_SSH_KEY_NAME}.pem
config.yamlの作成
AWSの情報をManagement Cluster用の設定ファイル(~/.tkg/config.yaml)に追記します。
cat <<EOF >> ~/.tkg/config.yaml
AWS_REGION: ${AWS_DEFAULT_REGION}
AWS_NODE_AZ: ${AWS_DEFAULT_REGION}a
AWS_NODE_AZ_1: ${AWS_DEFAULT_REGION}c
AWS_NODE_AZ_2: ${AWS_DEFAULT_REGION}d
AWS_PRIVATE_NODE_CIDR: 10.0.0.0/24
AWS_PRIVATE_NODE_CIDR_1: 10.0.2.0/24
AWS_PRIVATE_NODE_CIDR_2: 10.0.4.0/24
AWS_PUBLIC_NODE_CIDR: 10.0.1.0/24
AWS_PUBLIC_NODE_CIDR_1: 10.0.3.0/24
AWS_PUBLIC_NODE_CIDR_2: 10.0.5.0/24
AWS_PUBLIC_SUBNET_ID:
AWS_PUBLIC_SUBNET_ID_1:
AWS_PUBLIC_SUBNET_ID_2:
AWS_PRIVATE_SUBNET_ID:
AWS_PRIVATE_SUBNET_ID_1:
AWS_PRIVATE_SUBNET_ID_2:
AWS_SSH_KEY_NAME: ${AWS_SSH_KEY_NAME}
AWS_VPC_ID:
AWS_VPC_CIDR: 10.0.0.0/16
CLUSTER_CIDR: 100.96.0.0/11
CONTROL_PLANE_MACHINE_TYPE: t3.small
NODE_MACHINE_TYPE: t3.medium
AWS_B64ENCODED_CREDENTIALS: $(cat <<EOD | base64 -w 0
[default]
aws_access_key_id = ${AWS_ACCESS_KEY_ID}
aws_secret_access_key = ${AWS_SECRET_ACCESS_KEY}
region = ${AWS_DEFAULT_REGION}
EOD)
EOF
AWS CloudFormation Stackの作成
Cloud FormationでIAM関連のリソースを作成します。次のように tkg config permissions aws コマンドで作成されます。
$ tkg config permissions aws
Creating AWS CloudFormation Stack
Following resources are in the stack:
Resource |Type |Status
AWS::IAM::InstanceProfile |control-plane.tkg.cloud.vmware.com |CREATE_COMPLETE
AWS::IAM::InstanceProfile |controllers.tkg.cloud.vmware.com |CREATE_COMPLETE
AWS::IAM::InstanceProfile |nodes.tkg.cloud.vmware.com |CREATE_COMPLETE
AWS::IAM::ManagedPolicy |arn:aws:iam::120200614459:policy/control-plane.tkg.cloud.vmware.com |CREATE_COMPLETE
AWS::IAM::ManagedPolicy |arn:aws:iam::120200614459:policy/nodes.tkg.cloud.vmware.com |CREATE_COMPLETE
AWS::IAM::ManagedPolicy |arn:aws:iam::120200614459:policy/controllers.tkg.cloud.vmware.com |CREATE_COMPLETE
AWS::IAM::Role |control-plane.tkg.cloud.vmware.com |CREATE_COMPLETE
AWS::IAM::Role |controllers.tkg.cloud.vmware.com |CREATE_COMPLETE
AWS::IAM::Role |nodes.tkg.cloud.vmware.com |CREATE_COMPLETE
Management ClusterをAWSに作成
TKGでWorkload Clusterを作成するための、Management Clusterを作成します。
ドキュメントではGUIを使ってインストールすることを推奨されていますが、CLIでインストールします。
次のコマンドでManagement Clusterを作成します。Control Planeの台数はdev planが1台、prodが3台になります。
tkg init --infrastructure aws --name tkg-sandbox --plan dev
tkg initでKindクラスタ作成、clusterctl init、clusterclt config、kubectl apply相当の処理が行われます。
次のようなログが出力されます。
Waiting for cert-manager to be available...
Installing Provider="cluster-api" Version="v0.3.10" TargetNamespace="capi-system"
Installing Provider="bootstrap-kubeadm" Version="v0.3.10" TargetNamespace="capi-kubeadm-bootstrap-system"
Installing Provider="control-plane-kubeadm" Version="v0.3.10" TargetNamespace="capi-kubeadm-control-plane-system"
Installing Provider="infrastructure-aws" Version="v0.5.5" TargetNamespace="capa-system"
Start creating management cluster...
Saving management cluster kuebconfig into /home/maki/.kube/config
Installing providers on management cluster...
Fetching providers
Installing cert-manager Version="v0.16.1"
Waiting for cert-manager to be available...
Installing Provider="cluster-api" Version="v0.3.10" TargetNamespace="capi-system"
Installing Provider="bootstrap-kubeadm" Version="v0.3.10" TargetNamespace="capi-kubeadm-bootstrap-system"
Installing Provider="control-plane-kubeadm" Version="v0.3.10" TargetNamespace="capi-kubeadm-control-plane-system"
Installing Provider="infrastructure-aws" Version="v0.5.5" TargetNamespace="capa-system"
Waiting for the management cluster to get ready for move...
Waiting for addons installation...
Moving all Cluster API objects from bootstrap cluster to management cluster...
Performing move...
Discovering Cluster API objects
Moving Cluster API objects Clusters=1
Creating objects in the target cluster
Deleting objects from the source cluster
Context set for management cluster tkg-sandbox as 'tkg-sandbox-admin@tkg-sandbox'.
Management cluster created!
You can now create your first workload cluster by running the following:
tkg create cluster [name] --kubernetes-version=[version] --plan=[plan]

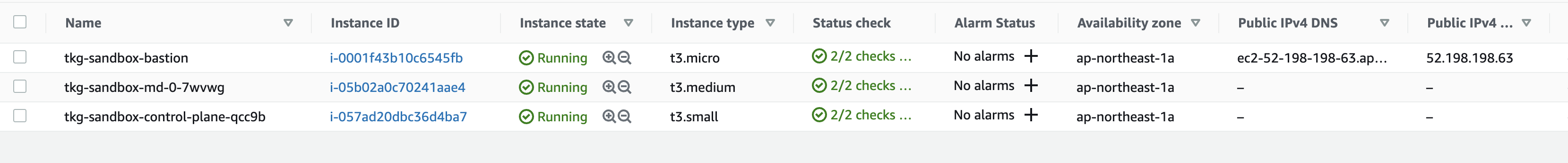

EC2上には次のVMが作成されています。

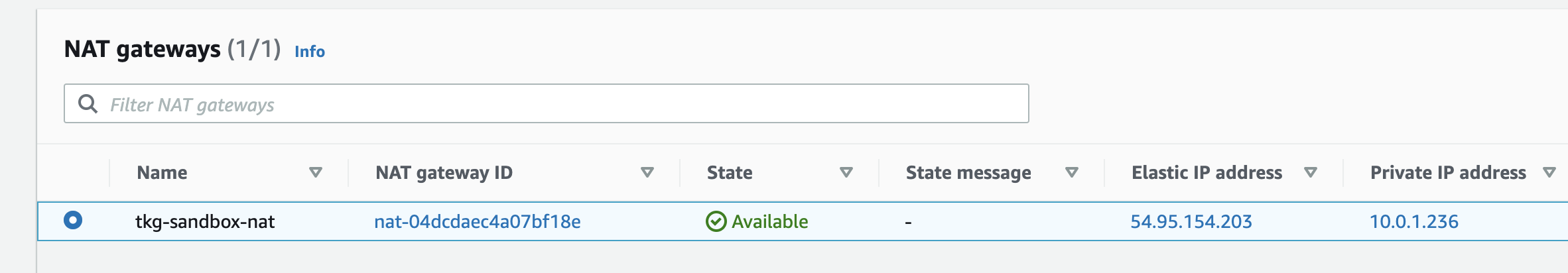

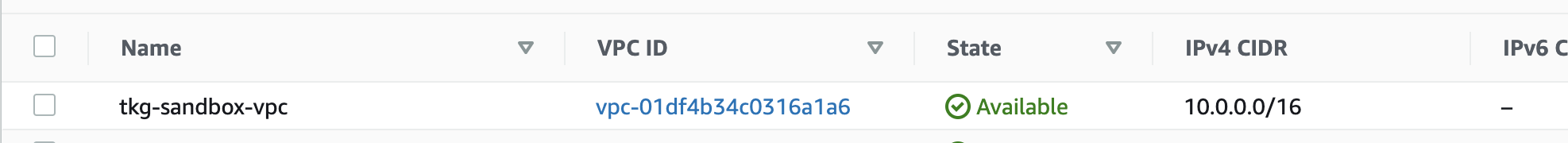

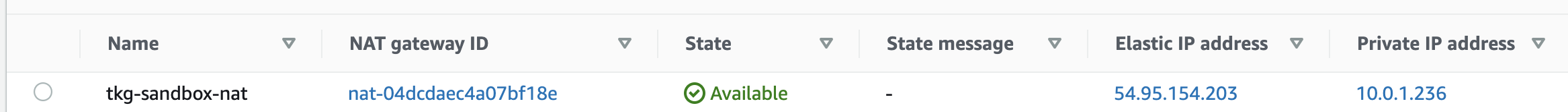

VPCやNAT Gatewayもconfig.yamlに合わせて作成されます。
tkg get management-clusterまたはtkg get mcコマンドでManagement Cluster一覧を取得できます。
$ tkg get management-cluster
MANAGEMENT-CLUSTER-NAME CONTEXT-NAME STATUS
tkg-sandbox * tkg-sandbox-admin@tkg-sandbox Success
tkg get cluster --include-management-clusterコマンドでWorkload Cluster及びManagement Cluster一覧を取得できます。
$ tkg get cluster --include-management-cluster
NAME NAMESPACE STATUS CONTROLPLANE WORKERS KUBERNETES ROLES
tkg-sandbox tkg-system running 1/1 1/1 v1.19.1+vmware.2 management
Management Clusterにkubectlコマンドでアクセスしてみます。
$ kubectl config use-context tkg-sandbox-admin@tkg-sandbox
$ kubectl cluster-info
Kubernetes master is running at https://tkg-sandbox-apiserver-125309106.ap-northeast-1.elb.amazonaws.com:6443
KubeDNS is running at https://tkg-sandbox-apiserver-125309106.ap-northeast-1.elb.amazonaws.com:6443/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy
To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'.
$ kubectl get node -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
ip-10-0-0-230.ap-northeast-1.compute.internal Ready master 139m v1.19.1+vmware.2 10.0.0.230 <none> Amazon Linux 2 4.14.193-149.317.amzn2.x86_64 containerd://1.3.4
ip-10-0-0-64.ap-northeast-1.compute.internal Ready <none> 135m v1.19.1+vmware.2 10.0.0.64 <none> Amazon Linux 2 4.14.193-149.317.amzn2.x86_64 containerd://1.3.4
$ kubectl get pod -A -o wide
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
capa-system capa-controller-manager-7978bf88dc-48xsv 2/2 Running 0 134m 100.96.0.5 ip-10-0-0-230.ap-northeast-1.compute.internal <none> <none>
capi-kubeadm-bootstrap-system capi-kubeadm-bootstrap-controller-manager-555959949-vpsrb 2/2 Running 0 134m 100.96.1.8 ip-10-0-0-64.ap-northeast-1.compute.internal <none> <none>
capi-kubeadm-control-plane-system capi-kubeadm-control-plane-controller-manager-55fccd567d-sm96p 2/2 Running 0 134m 100.96.0.4 ip-10-0-0-230.ap-northeast-1.compute.internal <none> <none>
capi-system capi-controller-manager-dcccc544f-w4p8d 2/2 Running 0 134m 100.96.1.6 ip-10-0-0-64.ap-northeast-1.compute.internal <none> <none>
capi-webhook-system capa-controller-manager-56cf675c-czqwf 2/2 Running 0 134m 100.96.1.10 ip-10-0-0-64.ap-northeast-1.compute.internal <none> <none>
capi-webhook-system capi-controller-manager-84fd8774b6-n9xnj 2/2 Running 0 135m 100.96.1.5 ip-10-0-0-64.ap-northeast-1.compute.internal <none> <none>
capi-webhook-system capi-kubeadm-bootstrap-controller-manager-5c4886bf78-vbxkk 2/2 Running 0 134m 100.96.1.7 ip-10-0-0-64.ap-northeast-1.compute.internal <none> <none>
capi-webhook-system capi-kubeadm-control-plane-controller-manager-85578c464c-hpmcf 2/2 Running 0 134m 100.96.1.9 ip-10-0-0-64.ap-northeast-1.compute.internal <none> <none>
cert-manager cert-manager-556f68587d-2rf52 1/1 Running 0 137m 100.96.1.2 ip-10-0-0-64.ap-northeast-1.compute.internal <none> <none>
cert-manager cert-manager-cainjector-5bc85c4c69-vdqc5 1/1 Running 0 137m 100.96.1.4 ip-10-0-0-64.ap-northeast-1.compute.internal <none> <none>
cert-manager cert-manager-webhook-7bd69dfcf8-qgfp2 1/1 Running 0 137m 100.96.1.3 ip-10-0-0-64.ap-northeast-1.compute.internal <none> <none>
kube-system antrea-agent-bnmxk 2/2 Running 0 135m 10.0.0.64 ip-10-0-0-64.ap-northeast-1.compute.internal <none> <none>
kube-system antrea-agent-fpz5c 2/2 Running 0 139m 10.0.0.230 ip-10-0-0-230.ap-northeast-1.compute.internal <none> <none>
kube-system antrea-controller-5d594c5cc7-bjkkg 1/1 Running 0 139m 10.0.0.230 ip-10-0-0-230.ap-northeast-1.compute.internal <none> <none>
kube-system coredns-5bcf65484d-98wlm 1/1 Running 0 140m 100.96.0.3 ip-10-0-0-230.ap-northeast-1.compute.internal <none> <none>
kube-system coredns-5bcf65484d-tmbs2 1/1 Running 0 140m 100.96.0.2 ip-10-0-0-230.ap-northeast-1.compute.internal <none> <none>
kube-system etcd-ip-10-0-0-230.ap-northeast-1.compute.internal 1/1 Running 0 140m 10.0.0.230 ip-10-0-0-230.ap-northeast-1.compute.internal <none> <none>
kube-system kube-apiserver-ip-10-0-0-230.ap-northeast-1.compute.internal 1/1 Running 0 140m 10.0.0.230 ip-10-0-0-230.ap-northeast-1.compute.internal <none> <none>
kube-system kube-controller-manager-ip-10-0-0-230.ap-northeast-1.compute.internal 1/1 Running 0 140m 10.0.0.230 ip-10-0-0-230.ap-northeast-1.compute.internal <none> <none>
kube-system kube-proxy-smdgg 1/1 Running 0 140m 10.0.0.230 ip-10-0-0-230.ap-northeast-1.compute.internal <none> <none>
kube-system kube-proxy-zrccj 1/1 Running 0 135m 10.0.0.64 ip-10-0-0-64.ap-northeast-1.compute.internal <none> <none>
kube-system kube-scheduler-ip-10-0-0-230.ap-northeast-1.compute.internal 1/1 Running 0 140m 10.0.0.230 ip-10-0-0-230.ap-northeast-1.compute.internal <none> <none>
Cluster APIのリソースも見てみます。
$ kubectl get cluster -A
NAMESPACE NAME PHASE
tkg-system tkg-sandbox Provisioned
$ kubectl get machinedeployment -A
NAMESPACE NAME PHASE REPLICAS AVAILABLE READY
tkg-system tkg-sandbox-md-0 Running 1 1 1
$ kubectl get machineset -A
NAMESPACE NAME REPLICAS AVAILABLE READY
tkg-system tkg-sandbox-md-0-6b588d694f 1 1 1
$ kubectl get machine -A
NAMESPACE NAME PROVIDERID PHASE VERSION
tkg-system tkg-sandbox-control-plane-xlnrk aws:///ap-northeast-1a/i-057ad20dbc36d4ba7 Running v1.19.1+vmware.2
tkg-system tkg-sandbox-md-0-6b588d694f-m9n6n aws:///ap-northeast-1a/i-05b02a0c70241aae4 Running v1.19.1+vmware.2
$ kubectl get machinehealthcheck -A
NAMESPACE NAME MAXUNHEALTHY EXPECTEDMACHINES CURRENTHEALTHY
tkg-system tkg-sandbox 100% 1 1
$ kubectl get kubeadmcontrolplane -A
NAMESPACE NAME INITIALIZED API SERVER AVAILABLE VERSION REPLICAS READY UPDATED UNAVAILABLE
tkg-system tkg-sandbox-control-plane true true v1.19.1+vmware.2 1 1 1
$ kubectl get kubeadmconfigtemplate -A
NAMESPACE NAME AGE
tkg-system tkg-sandbox-md-0 137m
AWS実装のリソースも見てみます。
$ kubectl get awscluster -A
NAMESPACE NAME CLUSTER READY VPC BASTION IP
tkg-system tkg-sandbox tkg-sandbox true vpc-01df4b34c0316a1a6 52.198.198.63
$ kubectl get awsmachine -A
NAMESPACE NAME CLUSTER STATE READY INSTANCEID MACHINE
tkg-system tkg-sandbox-control-plane-qcc9b tkg-sandbox running true aws:///ap-northeast-1a/i-057ad20dbc36d4ba7 tkg-sandbox-control-plane-xlnrk
tkg-system tkg-sandbox-md-0-7wvwg tkg-sandbox running true aws:///ap-northeast-1a/i-05b02a0c70241aae4 tkg-sandbox-md-0-6b588d694f-m9n6n
$ kubectl get awsmachinetemplate -A
NAMESPACE NAME AGE
tkg-system tkg-sandbox-control-plane 138m
tkg-system tkg-sandbox-md-0 138m
Bastionサーバーにはsshでアクセスできます。BastionサーバーからClusterへのVMにsshでアクセスできます。
どちらも~/${AWS_SSH_KEY_NAME}.pemを使用します。
chmod 600 ~/${AWS_SSH_KEY_NAME}.pem
scp -i ~/${AWS_SSH_KEY_NAME}.pem ~/${AWS_SSH_KEY_NAME}.pem ubuntu@52.198.198.63:~/
ssh ubuntu@<Bastion IP> -i ~/${AWS_SSH_KEY_NAME}.pem
# Bastionサーバー内で
ssh ec2-user@<Cluster VM IP> -i ~/${AWS_SSH_KEY_NAME}.pem
Workload Clusterを作成
対象のManagement Clusterをtkg set management-clusterで指定します。1つしかなければ不要です。
$ tkg set management-cluster tkg-sandbox
The current management cluster context is switched to tkg-sandbox
対象となっているManagement Clusterをtkg set management-clusterで確認できます。*がついているクラスタが対象です。
$ tkg get management-cluster
MANAGEMENT-CLUSTER-NAME CONTEXT-NAME
tkg-sandbox * tkg-sandbox-admin@tkg-sandbox
tkg create clusterでWorkload Clusterを作成します。
tkg create cluster demo --plan dev
次のようなログが出力されます。
Logs of the command execution can also be found at: /tmp/tkg-20201105T124518501764498.log
Validating configuration...
Creating workload cluster 'demo'...
Waiting for cluster to be initialized...
Waiting for cluster nodes to be available...
Waiting for addons installation...
Workload cluster 'demo' created

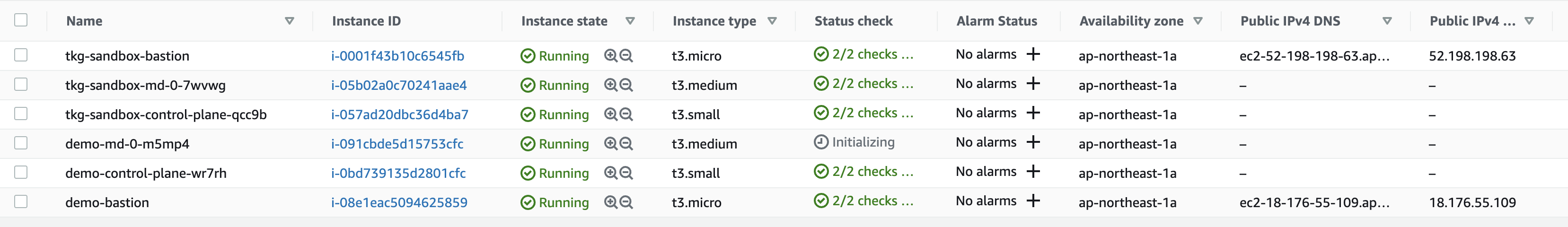

EC2上には次のVMが作成されています。

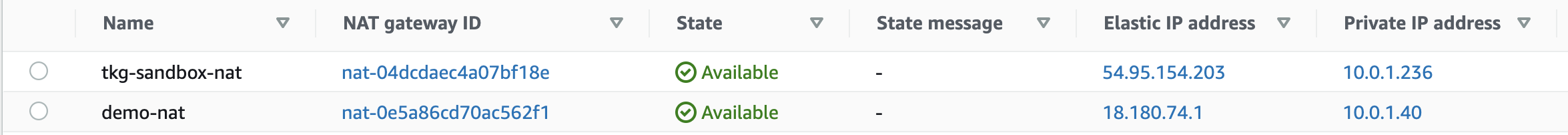

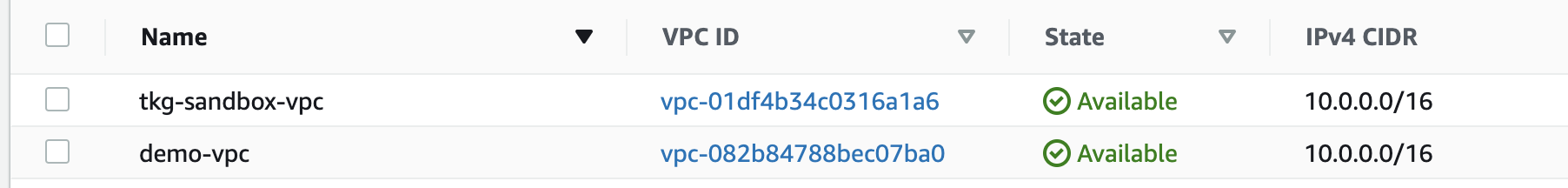

Workload Cluster用にも専用のVPCやNAT Gatewayがconfig.yamlに合わせて作成されます。
Workload ClusterをManagement Clusterと同じVPCに作成する方法は後述します。
tkg get clusterでWorkload Clusterを確認できます。
$ tkg get cluster
NAME NAMESPACE STATUS CONTROLPLANE WORKERS KUBERNETES ROLES
demo default running 1/1 1/1 v1.19.1+vmware.2 <none>
Cluster APIのリソースを確認します。
$ kubectl get cluster -A
NAMESPACE NAME PHASE
default demo Provisioned
tkg-system tkg-sandbox Provisioned
$ kubectl get machinedeployment -A
NAMESPACE NAME PHASE REPLICAS AVAILABLE READY
default demo-md-0 Running 1 1 1
tkg-system tkg-sandbox-md-0 Running 1 1 1
$ kubectl get machineset -A
NAMESPACE NAME REPLICAS AVAILABLE READY
default demo-md-0-686d958865 1 1 1
tkg-system tkg-sandbox-md-0-6b588d694f 1 1 1
$ kubectl get machine -A
NAMESPACE NAME PROVIDERID PHASE VERSION
default demo-control-plane-srv29 aws:///ap-northeast-1a/i-0bd739135d2801cfc Running v1.19.1+vmware.2
default demo-md-0-686d958865-74bqc aws:///ap-northeast-1a/i-091cbde5d15753cfc Running v1.19.1+vmware.2
tkg-system tkg-sandbox-control-plane-xlnrk aws:///ap-northeast-1a/i-057ad20dbc36d4ba7 Running v1.19.1+vmware.2
tkg-system tkg-sandbox-md-0-6b588d694f-m9n6n aws:///ap-northeast-1a/i-05b02a0c70241aae4 Running v1.19.1+vmware.2
$ kubectl get machinehealthcheck -A
NAMESPACE NAME MAXUNHEALTHY EXPECTEDMACHINES CURRENTHEALTHY
default demo 100% 1 1
tkg-system tkg-sandbox 100% 1 1
$ kubectl get kubeadmcontrolplane -A
NAMESPACE NAME INITIALIZED API SERVER AVAILABLE VERSION REPLICAS READY UPDATED UNAVAILABLE
default demo-control-plane true true v1.19.1+vmware.2 1 1 1
tkg-system tkg-sandbox-control-plane true true v1.19.1+vmware.2 1 1 1
$ kubectl get kubeadmconfigtemplate -A
NAMESPACE NAME AGE
default demo-md-0 12m
tkg-system tkg-sandbox-md-0 3h23m
$ kubectl get awscluster -A
NAMESPACE NAME CLUSTER READY VPC BASTION IP
default demo demo true vpc-082b84788bec07ba0 18.176.55.109
tkg-system tkg-sandbox tkg-sandbox true vpc-01df4b34c0316a1a6 52.198.198.63
$ kubectl get awsmachine -A
NAMESPACE NAME CLUSTER STATE READY INSTANCEID MACHINE
default demo-control-plane-wr7rh demo running true aws:///ap-northeast-1a/i-0bd739135d2801cfc demo-control-plane-srv29
default demo-md-0-m5mp4 demo running true aws:///ap-northeast-1a/i-091cbde5d15753cfc demo-md-0-686d958865-74bqc
tkg-system tkg-sandbox-control-plane-qcc9b tkg-sandbox running true aws:///ap-northeast-1a/i-057ad20dbc36d4ba7 tkg-sandbox-control-plane-xlnrk
tkg-system tkg-sandbox-md-0-7wvwg tkg-sandbox running true aws:///ap-northeast-1a/i-05b02a0c70241aae4 tkg-sandbox-md-0-6b588d694f-m9n6n
$ kubectl get awsmachinetemplate -A
NAMESPACE NAME AGE
default demo-control-plane 14m
default demo-md-0 14m
tkg-system tkg-sandbox-control-plane 3h24m
tkg-system tkg-sandbox-md-0 3h24m
Workload Cluster demoのconfigを取得して、Current Contextに設定します。
tkg get credentials demo
kubectl config use-context demo-admin@demo
Workload Cluster demoを確認します。
$ kubectl cluster-info
Kubernetes master is running at https://demo-apiserver-1258812371.ap-northeast-1.elb.amazonaws.com:6443
KubeDNS is running at https://demo-apiserver-1258812371.ap-northeast-1.elb.amazonaws.com:6443/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy
To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'.
$ kubectl get node -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
ip-10-0-0-128.ap-northeast-1.compute.internal Ready <none> 7m57s v1.19.1+vmware.2 10.0.0.128 <none> Amazon Linux 2 4.14.193-149.317.amzn2.x86_64 containerd://1.3.4
ip-10-0-0-170.ap-northeast-1.compute.internal Ready master 9m29s v1.19.1+vmware.2 10.0.0.170 <none> Amazon Linux 2 4.14.193-149.317.amzn2.x86_64 containerd://1.3.4
$ kubectl get pod -A -o wide
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system antrea-agent-mv5q6 2/2 Running 0 9m45s 10.0.0.170 ip-10-0-0-170.ap-northeast-1.compute.internal <none> <none>
kube-system antrea-agent-xkxhx 2/2 Running 0 8m17s 10.0.0.128 ip-10-0-0-128.ap-northeast-1.compute.internal <none> <none>
kube-system antrea-controller-5d594c5cc7-7vbfg 1/1 Running 0 9m45s 10.0.0.170 ip-10-0-0-170.ap-northeast-1.compute.internal <none> <none>
kube-system coredns-5bcf65484d-4fvpg 1/1 Running 0 9m48s 100.96.0.2 ip-10-0-0-170.ap-northeast-1.compute.internal <none> <none>
kube-system coredns-5bcf65484d-djl5z 1/1 Running 0 9m48s 100.96.0.3 ip-10-0-0-170.ap-northeast-1.compute.internal <none> <none>
kube-system etcd-ip-10-0-0-170.ap-northeast-1.compute.internal 1/1 Running 0 9m43s 10.0.0.170 ip-10-0-0-170.ap-northeast-1.compute.internal <none> <none>
kube-system kube-apiserver-ip-10-0-0-170.ap-northeast-1.compute.internal 1/1 Running 0 9m43s 10.0.0.170 ip-10-0-0-170.ap-northeast-1.compute.internal <none> <none>
kube-system kube-controller-manager-ip-10-0-0-170.ap-northeast-1.compute.internal 1/1 Running 0 9m42s 10.0.0.170 ip-10-0-0-170.ap-northeast-1.compute.internal <none> <none>
kube-system kube-proxy-lrk29 1/1 Running 0 8m17s 10.0.0.128 ip-10-0-0-128.ap-northeast-1.compute.internal <none> <none>
kube-system kube-proxy-p5jlm 1/1 Running 0 9m48s 10.0.0.170 ip-10-0-0-170.ap-northeast-1.compute.internal <none> <none>
kube-system kube-scheduler-ip-10-0-0-170.ap-northeast-1.compute.internal 1/1 Running 0 9m42s 10.0.0.170 ip-10-0-0-170.ap-northeast-1.compute.internal <none> <none>
動作確認用にサンプルアプリをデプロイします。
kubectl create deployment demo --image=making/hello-cnb --dry-run=client -o=yaml > /tmp/deployment.yaml
echo --- >> /tmp/deployment.yaml
kubectl create service loadbalancer demo --tcp=80:8080 --dry-run=client -o=yaml >> /tmp/deployment.yaml
kubectl apply -f /tmp/deployment.yaml
PodとServiceを確認します。
$ kubectl get pod,svc -l app=demo
NAME READY STATUS RESTARTS AGE
pod/demo-597cf89c5f-srpmv 1/1 Running 0 7m4s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/demo LoadBalancer 100.68.180.248 a7b1d8c18f5994f279eb4f0773dfe730-283150384.ap-northeast-1.elb.amazonaws.com 80:31173/TCP 7m4s
アプリにアクセスします。
$ curl http://a7b1d8c18f5994f279eb4f0773dfe730-283150384.ap-northeast-1.elb.amazonaws.com/actuator/health
{"status":"UP","groups":["liveness","readiness"]}
デプロイしたリソースを削除します。
kubectl delete -f /tmp/deployment.yaml
Workload Clusterを削除
いったんdemo Workload Clusterを削除します。
tkg delete cluster demo -y
tkg get clusterを確認するとSTATUSがdeletingになります。
$ tkg get cluster
NAME NAMESPACE STATUS CONTROLPLANE WORKERS KUBERNETES ROLES
demo default deleting 1/1 v1.19.1+vmware.2 <none>
しばらくするとtkg get clusterの結果からdemoが消えます。
$ tkg get cluster
NAME NAMESPACE STATUS CONTROLPLANE WORKERS KUBERNETES
Workload ClusterをManagement Clusterと同じVPC/Subnetに作成
次にWorkload ClusterをManagement Clusterと同じVPC/Subnetに作成します。Bastion VMやNAT GatewayをManagement Clusterと共用できます。
~/.tkg/config.yamlを編集し、次の箇所を設定します。
# ... (略) ...
AWS_PUBLIC_SUBNET_ID: <Management ClusterのPublic Subnet ID>
AWS_PUBLIC_SUBNET_ID_1: <Management ClusterのPublic Subnet ID 1 (--plan=prodの場合)>
AWS_PUBLIC_SUBNET_ID_2: <Management ClusterのPublic Subnet ID 2 (--plan=prodの場合)>
AWS_PRIVATE_SUBNET_ID: <Management ClusterのPrivate Subnet ID>
AWS_PRIVATE_SUBNET_ID_1: <Management ClusterのPrivate Subnet ID 1 (--plan=prodの場合)>
AWS_PRIVATE_SUBNET_ID_2: <Management ClusterのPrivate Subnet ID 2 (--plan=prodの場合)>
AWS_SSH_KEY_NAME: tkg-sandbox
AWS_VPC_ID: <Management ClusterのVPC ID>
# ... (略) ...

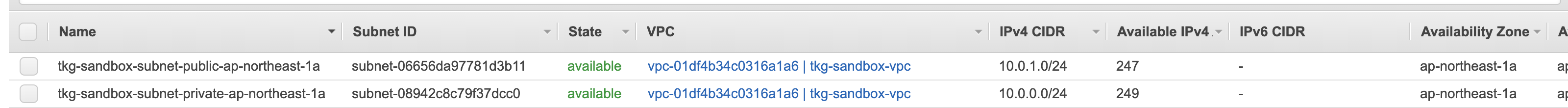

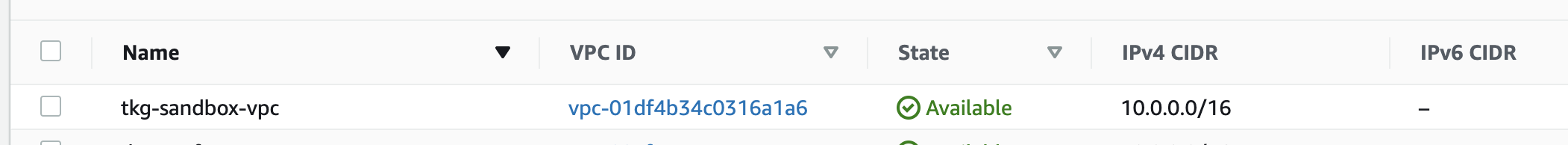

次の図の例だと、
~/.tkg/config.yamlは次のようになります。
# ... (略) ...
AWS_PUBLIC_SUBNET_ID: subnet-06054c4866dafd2ad
AWS_PRIVATE_SUBNET_ID: subnet-01061ff8fbb3eb50f
AWS_SSH_KEY_NAME: tkg-sandbox
AWS_VPC_ID: vpc-0b1166959b313d695
# ... (略) ...
このConfigを使ってWorkload Clusterを作成します。
tkg create cluster demo --plan dev

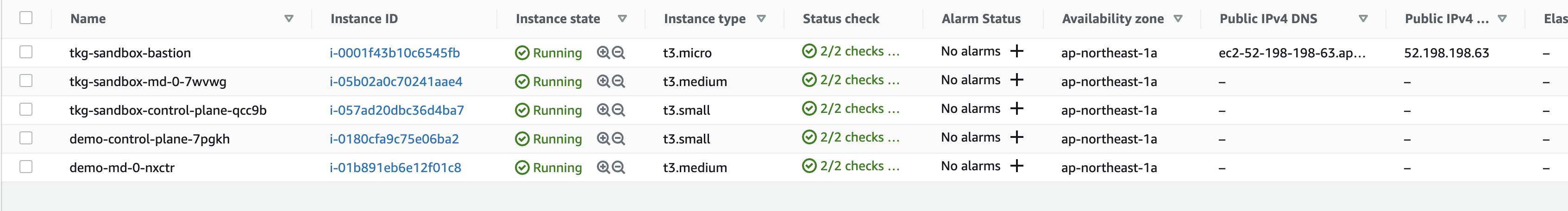

EC2上のVMを確認するとWorkload Cluster用のBastionがいないことを確認できます。
VPCもNAT Gatewayも一つのままです。
AWSClusterとAWSMachineは次のようになります。
$ kubectl config use-context tkg-sandbox-admin@tkg-sandbox
$ kubectl get awscluster -A
NAMESPACE NAME CLUSTER READY VPC BASTION IP
default demo demo true vpc-01df4b34c0316a1a6
tkg-system tkg-sandbox tkg-sandbox true vpc-01df4b34c0316a1a6 52.198.198.63
$ kubectl get awsmachine -A
NAMESPACE NAME CLUSTER STATE READY INSTANCEID MACHINE
default demo-control-plane-7pgkh demo running true aws:///ap-northeast-1a/i-0180cfa9c75e06ba2 demo-control-plane-dgnnb
default demo-md-0-nxctr demo running true aws:///ap-northeast-1a/i-01b891eb6e12f01c8 demo-md-0-686d958865-g9f9v
tkg-system tkg-sandbox-control-plane-qcc9b tkg-sandbox running true aws:///ap-northeast-1a/i-057ad20dbc36d4ba7 tkg-sandbox-control-plane-xlnrk
tkg-system tkg-sandbox-md-0-7wvwg tkg-sandbox running true aws:///ap-northeast-1a/i-05b02a0c70241aae4 tkg-sandbox-md-0-6b588d694f-m9n6n
先ほどと同じように、Workload Cluster demoのconfigを取得して、Current Contextに設定します。
tkg get credentials demo
kubectl config use-context demo-admin@demo
Workload Cluster demoを確認します。
$ kubectl cluster-info
Kubernetes master is running at https://demo-apiserver-286173010.ap-northeast-1.elb.amazonaws.com:6443
KubeDNS is running at https://demo-apiserver-286173010.ap-northeast-1.elb.amazonaws.com:6443/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy
To further debug and diagnose cluster problems, use 'kubectl cluster-info dump'.
$ kubectl get node -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
ip-10-0-0-199.ap-northeast-1.compute.internal Ready master 16m v1.19.1+vmware.2 10.0.0.199 <none> Amazon Linux 2 4.14.193-149.317.amzn2.x86_64 containerd://1.3.4
ip-10-0-0-38.ap-northeast-1.compute.internal Ready <none> 14m v1.19.1+vmware.2 10.0.0.38 <none> Amazon Linux 2 4.14.193-149.317.amzn2.x86_64 containerd://1.3.4
一点、注意点があり、Type: LoadBalancerなServiceがプロビジョニングするLoadBalancerのpublic subnetを明示的に指定する必要があります。

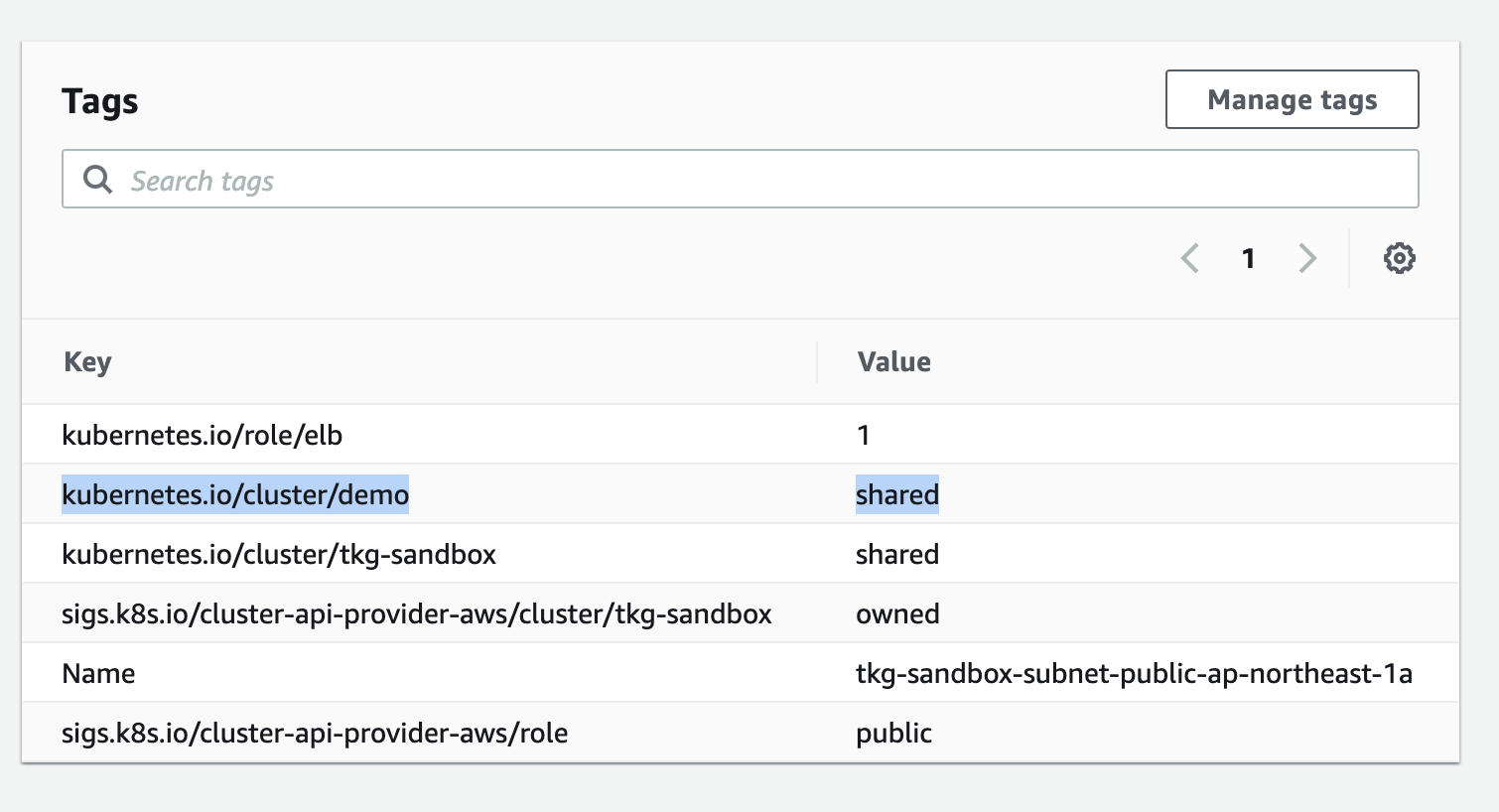

対象のpublic subnet(prod planの場合は3AZ分)に、次の図のようにkeyがkubernetes.io/cluster/<cluster-name>、valueがsharedであるtagを追加する必要があります。
同じ要領で、他の既存のVPC/Subnetに作成することもできます。BastionサーバーやNATのリソースを集約したい場合はこちらが良いです。
TKG外の既存のVPCを使う場合はconfig.yamlの4行目にある BASTION_HOST_ENABLED: "true" を BASTION_HOST_ENABLED: "false" に変更すれば、Bastionサーバーは作成されません。
ただし、同じVPC内に別のBastionサーバーまたはJumpboxサーバーがないとTKGで作成されたVMにsshでログインできないので気をつけてください。
逆に言うと、AWS_VPC_IDやAWS_PUBLIC_SUBNET_ID、AWS_PRIVATE_SUBNET_ID等が設定されていなければ、毎回自動で作成されます。
Workload Clusterのスケールアウト
tkg scale clusterコマンドでWorkload Clusterをスケールアウトできます。
tkg scale cluster demo -w 3
Workerが3台に増えたことが確認できます。
$ kubectl get node -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
ip-10-0-0-199.ap-northeast-1.compute.internal Ready master 21m v1.19.1+vmware.2 10.0.0.199 <none> Amazon Linux 2 4.14.193-149.317.amzn2.x86_64 containerd://1.3.4
ip-10-0-0-254.ap-northeast-1.compute.internal Ready <none> 2m39s v1.19.1+vmware.2 10.0.0.254 <none> Amazon Linux 2 4.14.193-149.317.amzn2.x86_64 containerd://1.3.4
ip-10-0-0-29.ap-northeast-1.compute.internal Ready <none> 2m40s v1.19.1+vmware.2 10.0.0.29 <none> Amazon Linux 2 4.14.193-149.317.amzn2.x86_64 containerd://1.3.4
ip-10-0-0-38.ap-northeast-1.compute.internal Ready <none> 18m v1.19.1+vmware.2 10.0.0.38 <none> Amazon Linux 2 4.14.193-149.317.amzn2.x86_64 containerd://1.3.4
デフォルトの設定ではdev Planの場合は1AZ、prod Planの場合は3AZになります。
Workerを3 AZにデプロイしたいけれども、Control Planeは1インスタンスにしたい場合は次のようにクラスタを作成すれば良いです。
tkg create cluster demo --plan prod --controlplane-machine-count 1 --worker-machine-count 3
prod PlanではWorkerは最低3インスタンス必要です。
Clusterの削除
次のコマンドでWorkload Clusterを削除します。
tkg delete cluster demo -y
Workload Clusterが削除された後、Management Clusterを削除します。
tkg delete management-cluster tkg-sandbox -y
Management Clusterの削除はKindが使われます。
TKGでAWS上にKubernetesクラスタを作成しました。
tkgコマンド(+ Cluster API)により一貫した手法でAWSでもvSphereでも同じようにクラスタを作成・管理できるため、
マルチクラウドでKubernetesを管理している場合は特に有用だと思います。
