"Tanzu Community EditionをDocker上にインストールするメモ" で構築したクラスタにPrometheus、Grafana Packageをインストールします。
依存PackageとしてCert ManagerとContourもインストールします。
目次
Cert Manager Packageのインストール
https://tanzucommunityedition.io/docs/latest/package-readme-cert-manager-1.5.3/
の通り。
次のコマンドでCert Managerをインストールします。
tanzu package install cert-manager --package-name cert-manager.community.tanzu.vmware.com --version 1.5.3 --namespace tce-package-install
このPackageでインストールされるリソースは次のコマンドで確認できます。
$ kubectl get app -n tce-package-install cert-manager -oyaml
apiVersion: kappctrl.k14s.io/v1alpha1
kind: App
metadata:
creationTimestamp: "2021-10-17T14:07:48Z"
finalizers:
- finalizers.kapp-ctrl.k14s.io/delete
generation: 1
name: cert-manager
namespace: tce-package-install
ownerReferences:
- apiVersion: packaging.carvel.dev/v1alpha1
blockOwnerDeletion: true
controller: true
kind: PackageInstall
name: cert-manager
uid: c4e9e61f-6bff-4685-95fe-e6d35a5a2908
resourceVersion: "62892"
uid: a8d083dd-e56a-4186-b677-0677591659fd
spec:
deploy:
- kapp: {}
fetch:
- imgpkgBundle:
image: projects.registry.vmware.com/tce/cert-manager@sha256:fcd2ea27f3d2c86ef56da7bb92c231537b12824d7c1bc3d7e5cea7d2aed4a9b9
serviceAccountName: cert-manager-tce-package-install-sa
template:
- ytt:
paths:
- config/
- kbld:
paths:
- '-'
- .imgpkg/images.yml
status:
conditions:
- status: "True"
type: ReconcileSucceeded
consecutiveReconcileSuccesses: 2
deploy:
exitCode: 0
finished: true
startedAt: "2021-10-17T14:08:49Z"
stdout: |-
Target cluster 'https://100.64.0.1:443' (nodes: ikra-control-plane-xpnf2, 3+)
02:08:50PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"networkpolicystats"}
02:08:50PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"antreanetworkpolicystats"}
02:08:50PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"antreaclusternetworkpolicystats"}
Changes
Namespace Name Kind Conds. Age Op Op st. Wait to Rs Ri
Op: 0 create, 0 delete, 0 update, 0 noop
Wait to: 0 reconcile, 0 delete, 0 noop
Succeeded
updatedAt: "2021-10-17T14:08:54Z"
fetch:
exitCode: 0
startedAt: "2021-10-17T14:08:44Z"
stdout: |
apiVersion: vendir.k14s.io/v1alpha1
directories:
- contents:
- imgpkgBundle:
image: projects.registry.vmware.com/tce/cert-manager@sha256:fcd2ea27f3d2c86ef56da7bb92c231537b12824d7c1bc3d7e5cea7d2aed4a9b9
path: .
path: "0"
kind: LockConfig
updatedAt: "2021-10-17T14:08:49Z"
friendlyDescription: Reconcile succeeded
inspect:
exitCode: 0
stdout: |-
Target cluster 'https://100.64.0.1:443' (nodes: ikra-control-plane-xpnf2, 3+)
02:08:54PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"antreaclusternetworkpolicystats"}
02:08:54PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"antreanetworkpolicystats"}
02:08:54PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"networkpolicystats"}
Resources in app 'cert-manager-ctrl'
Namespace Name Kind Owner Conds. Rs Ri Age
(cluster) cert-manager Namespace kapp - ok - 59s
^ cert-manager-cainjector ClusterRole kapp - ok - 59s
^ cert-manager-cainjector ClusterRoleBinding kapp - ok - 59s
^ cert-manager-controller-approve:cert-manager-io ClusterRole kapp - ok - 59s
^ cert-manager-controller-approve:cert-manager-io ClusterRoleBinding kapp - ok - 59s
^ cert-manager-controller-certificates ClusterRole kapp - ok - 59s
^ cert-manager-controller-certificates ClusterRoleBinding kapp - ok - 59s
^ cert-manager-controller-certificatesigningrequests ClusterRole kapp - ok - 59s
^ cert-manager-controller-certificatesigningrequests ClusterRoleBinding kapp - ok - 59s
^ cert-manager-controller-challenges ClusterRole kapp - ok - 59s
^ cert-manager-controller-challenges ClusterRoleBinding kapp - ok - 59s
^ cert-manager-controller-clusterissuers ClusterRole kapp - ok - 59s
^ cert-manager-controller-clusterissuers ClusterRoleBinding kapp - ok - 59s
^ cert-manager-controller-ingress-shim ClusterRole kapp - ok - 58s
^ cert-manager-controller-ingress-shim ClusterRoleBinding kapp - ok - 59s
^ cert-manager-controller-issuers ClusterRole kapp - ok - 59s
^ cert-manager-controller-issuers ClusterRoleBinding kapp - ok - 59s
^ cert-manager-controller-orders ClusterRole kapp - ok - 59s
^ cert-manager-controller-orders ClusterRoleBinding kapp - ok - 59s
^ cert-manager-edit ClusterRole kapp - ok - 59s
^ cert-manager-view ClusterRole kapp - ok - 59s
^ cert-manager-webhook MutatingWebhookConfiguration kapp - ok - 59s
^ cert-manager-webhook ValidatingWebhookConfiguration kapp - ok - 59s
^ cert-manager-webhook:subjectaccessreviews ClusterRole kapp - ok - 59s
^ cert-manager-webhook:subjectaccessreviews ClusterRoleBinding kapp - ok - 59s
^ certificaterequests.cert-manager.io CustomResourceDefinition kapp 2/2 t ok - 59s
^ certificates.cert-manager.io CustomResourceDefinition kapp 2/2 t ok - 58s
^ challenges.acme.cert-manager.io CustomResourceDefinition kapp 2/2 t ok - 59s
^ clusterissuers.cert-manager.io CustomResourceDefinition kapp 2/2 t ok - 59s
^ issuers.cert-manager.io CustomResourceDefinition kapp 2/2 t ok - 59s
^ orders.acme.cert-manager.io CustomResourceDefinition kapp 2/2 t ok - 59s
cert-manager cert-manager Deployment kapp 2/2 t ok - 56s
^ cert-manager Endpoints cluster - ok - 56s
^ cert-manager Service kapp - ok - 56s
^ cert-manager ServiceAccount kapp - ok - 56s
^ cert-manager-78679d6bbf ReplicaSet cluster - ok - 56s
^ cert-manager-78679d6bbf-7r8q8 Pod cluster 4/4 t ok - 56s
^ cert-manager-cainjector Deployment kapp 2/2 t ok - 56s
^ cert-manager-cainjector ServiceAccount kapp - ok - 56s
^ cert-manager-cainjector-6457db75d4 ReplicaSet cluster - ok - 56s
^ cert-manager-cainjector-6457db75d4-n4n6r Pod cluster 4/4 t ok - 56s
^ cert-manager-cdx5h EndpointSlice cluster - ok - 56s
^ cert-manager-webhook Deployment kapp 2/2 t ok - 56s
^ cert-manager-webhook Endpoints cluster - ok - 56s
^ cert-manager-webhook Service kapp - ok - 56s
^ cert-manager-webhook ServiceAccount kapp - ok - 56s
^ cert-manager-webhook-5t26v EndpointSlice cluster - ok - 56s
^ cert-manager-webhook-7db48df757 ReplicaSet cluster - ok - 56s
^ cert-manager-webhook-7db48df757-45dq5 Pod cluster 4/4 t ok - 56s
^ cert-manager-webhook:dynamic-serving Role kapp - ok - 56s
^ cert-manager-webhook:dynamic-serving RoleBinding kapp - ok - 56s
kube-system cert-manager-cainjector:leaderelection Role kapp - ok - 56s
^ cert-manager-cainjector:leaderelection RoleBinding kapp - ok - 56s
^ cert-manager:leaderelection Role kapp - ok - 56s
^ cert-manager:leaderelection RoleBinding kapp - ok - 56s
Rs: Reconcile state
Ri: Reconcile information
55 resources
Succeeded
updatedAt: "2021-10-17T14:08:54Z"
observedGeneration: 1
template:
exitCode: 0
stderr: |
resolve | final: quay.io/jetstack/cert-manager-cainjector:v1.5.3 -> quay.io/jetstack/cert-manager-cainjector@sha256:de02e3f445cfe7c035f2a9939b948c4d043011713389d9437311a62740f20bef
resolve | final: quay.io/jetstack/cert-manager-controller:v1.5.3 -> quay.io/jetstack/cert-manager-controller@sha256:7b039d469ed739a652f3bb8a1ddc122942b66cceeb85bac315449724ee64287f
resolve | final: quay.io/jetstack/cert-manager-webhook:v1.5.3 -> quay.io/jetstack/cert-manager-webhook@sha256:ed6354190d259524d32ae74471f93bf46bfdcf4df6f73629eedf576cd87e10b8
updatedAt: "2021-10-17T14:08:49Z"
Contour Packageのインストール
https://tanzucommunityedition.io/docs/latest/package-readme-contour-1.18.1/
の通り。
次のコマンドでContourをインストールします。
tanzu package install contour --package-name contour.community.tanzu.vmware.com --version 1.18.1 --namespace tce-package-install
このPackageでインストールされるリソースは次のコマンドで確認できます。
$ kubectl get app -n tce-package-install contour -oyaml
apiVersion: kappctrl.k14s.io/v1alpha1
kind: App
metadata:
creationTimestamp: "2021-10-17T13:57:30Z"
finalizers:
- finalizers.kapp-ctrl.k14s.io/delete
generation: 1
name: contour
namespace: tce-package-install
ownerReferences:
- apiVersion: packaging.carvel.dev/v1alpha1
blockOwnerDeletion: true
controller: true
kind: PackageInstall
name: contour
uid: c0274ef9-f0b7-4362-bb2b-8f54c9403199
resourceVersion: "60970"
uid: 60d5c45d-2f58-4434-a47b-099a7c65f218
spec:
deploy:
- kapp: {}
fetch:
- imgpkgBundle:
image: projects.registry.vmware.com/tce/contour@sha256:7f031ada007ab3ba53a8a71b55a7f2123343a7f180263de13ac72d7de97a16b0
serviceAccountName: contour-tce-package-install-sa
template:
- ytt:
paths:
- config/
- kbld:
paths:
- '-'
- .imgpkg/images.yml
status:
conditions:
- status: "True"
type: ReconcileSucceeded
consecutiveReconcileSuccesses: 2
deploy:
exitCode: 0
finished: true
startedAt: "2021-10-17T13:58:47Z"
stdout: |-
Target cluster 'https://100.64.0.1:443' (nodes: ikra-control-plane-xpnf2, 3+)
01:58:47PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"networkpolicystats"}
01:58:47PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"antreaclusternetworkpolicystats"}
01:58:47PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"antreanetworkpolicystats"}
Changes
Namespace Name Kind Conds. Age Op Op st. Wait to Rs Ri
Op: 0 create, 0 delete, 0 update, 0 noop
Wait to: 0 reconcile, 0 delete, 0 noop
Succeeded
updatedAt: "2021-10-17T13:58:48Z"
fetch:
exitCode: 0
startedAt: "2021-10-17T13:58:41Z"
stdout: |
apiVersion: vendir.k14s.io/v1alpha1
directories:
- contents:
- imgpkgBundle:
image: projects.registry.vmware.com/tce/contour@sha256:7f031ada007ab3ba53a8a71b55a7f2123343a7f180263de13ac72d7de97a16b0
path: .
path: "0"
kind: LockConfig
updatedAt: "2021-10-17T13:58:46Z"
friendlyDescription: Reconcile succeeded
inspect:
exitCode: 0
stdout: |-
Target cluster 'https://100.64.0.1:443' (nodes: ikra-control-plane-xpnf2, 3+)
01:58:48PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"antreaclusternetworkpolicystats"}
01:58:48PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"networkpolicystats"}
01:58:48PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"antreanetworkpolicystats"}
Resources in app 'contour-ctrl'
Namespace Name Kind Owner Conds. Rs Ri Age
(cluster) contour ClusterRole kapp - ok - 1m
^ contour ClusterRoleBinding kapp - ok - 1m
^ extensionservices.projectcontour.io CustomResourceDefinition kapp 2/2 t ok - 1m
^ httpproxies.projectcontour.io CustomResourceDefinition kapp 2/2 t ok - 1m
^ projectcontour Namespace kapp - ok - 1m
^ tlscertificatedelegations.projectcontour.io CustomResourceDefinition kapp 2/2 t ok - 1m
projectcontour contour ConfigMap kapp - ok - 1m
^ contour Deployment kapp 2/2 t ok - 1m
^ contour Endpoints cluster - ok - 1m
^ contour RoleBinding kapp - ok - 1m
^ contour Service kapp - ok - 1m
^ contour ServiceAccount kapp - ok - 1m
^ contour-55d794488b ReplicaSet cluster - ok - 1m
^ contour-55d794488b-bhmwt Pod cluster 4/4 t ok - 1m
^ contour-55d794488b-hcx4z Pod cluster 4/4 t ok - 1m
^ contour-certgen Role kapp - ok - 1m
^ contour-certgen ServiceAccount kapp - ok - 1m
^ contour-certgen-v1.18.1 Job kapp 1/1 t ok Completed 1m
^ contour-certgen-v1.18.1-sf88k Pod cluster 2/4 t ok - 1m
^ contour-l9x6m EndpointSlice cluster - ok - 1m
^ envoy DaemonSet kapp - ok - 1m
^ envoy Endpoints cluster - ok - 1m
^ envoy Service kapp - ok - 1m
^ envoy ServiceAccount kapp - ok - 1m
^ envoy-66kvm Pod cluster 4/4 t ok - 1m
^ envoy-7dbbdbf8c4 ControllerRevision cluster - ok - 1m
^ envoy-8t2h9 Pod cluster 4/4 t ok - 1m
^ envoy-nr4fl Pod cluster 4/4 t ok - 1m
^ envoy-vt994 EndpointSlice cluster - ok - 1m
Rs: Reconcile state
Ri: Reconcile information
29 resources
Succeeded
updatedAt: "2021-10-17T13:58:48Z"
observedGeneration: 1
template:
exitCode: 0
stderr: |
resolve | final: docker.io/envoyproxy/envoy:v1.19.1 -> index.docker.io/envoyproxy/envoy@sha256:ac6a29af5bee160a1b4425d7c7a41a4d8a08a7f9dd7f225f21b5375f6439457a
resolve | final: docker.io/projectcontour/contour:v1.18.1 -> index.docker.io/projectcontour/contour@sha256:31c376f80f5b80f2ac5558c1c50711438796b22b742285789ea21cd2bba244e2
updatedAt: "2021-10-17T13:58:47Z"
次のコマンドでEnvoyのExternal IPを確認します。
$ kubectl get svc -n projectcontour
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
contour ClusterIP 100.66.102.186 <none> 8001/TCP 16m
envoy LoadBalancer 100.64.149.8 172.18.0.200 80:30376/TCP,443:30902/TCP 16m
Prometheus Packageのインストール
https://tanzucommunityedition.io/docs/latest/package-readme-prometheus-2.27.0/
の通り。
次のコマンドでPrometheusをインストールします。デフォルトで無効になっているIngress(ContourのHTTPProxy)を有効にするために設定も追加します。
cat <<EOF > prometheus-values.yaml
ingress:
enabled: true
EOF
tanzu package install prometheus --package-name prometheus.community.tanzu.vmware.com --version 2.27.0 --namespace tce-package-install --values-file prometheus-values.yaml
なお、設定可能な値一覧は次のコマンドで確認できます。
tanzu package available get prometheus.community.tanzu.vmware.com/2.27.0 --values-schema
このPackageでインストールされるリソースは次のコマンドで確認できます。
$ kubectl get app -n tce-package-install prometheus -oyaml
apiVersion: kappctrl.k14s.io/v1alpha1
kind: App
metadata:
creationTimestamp: "2021-10-17T14:30:27Z"
finalizers:
- finalizers.kapp-ctrl.k14s.io/delete
generation: 1
name: prometheus
namespace: tce-package-install
ownerReferences:
- apiVersion: packaging.carvel.dev/v1alpha1
blockOwnerDeletion: true
controller: true
kind: PackageInstall
name: prometheus
uid: 21ac07d2-a848-4524-8066-d6fb56e4967b
resourceVersion: "69850"
uid: 07c3d9ad-365f-4645-b9ff-ef2803dc3d2b
spec:
deploy:
- kapp: {}
fetch:
- imgpkgBundle:
image: projects.registry.vmware.com/tce/prometheus@sha256:b6d81e04a8ba1d6b5a33fb3f781f8238a26fa9a2add1df301b9e189d58f6682b
serviceAccountName: prometheus-tce-package-install-sa
template:
- ytt:
paths:
- config/
valuesFrom:
- secretRef:
name: prometheus-tce-package-install-values
- kbld:
paths:
- '-'
- .imgpkg/images.yml
status:
conditions:
- status: "True"
type: ReconcileSucceeded
consecutiveReconcileSuccesses: 5
deploy:
exitCode: 0
finished: true
startedAt: "2021-10-17T14:34:06Z"
stdout: |-
Target cluster 'https://100.64.0.1:443' (nodes: ikra-control-plane-xpnf2, 3+)
02:34:07PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"networkpolicystats"}
02:34:07PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"antreaclusternetworkpolicystats"}
02:34:07PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"antreanetworkpolicystats"}
Changes
Namespace Name Kind Conds. Age Op Op st. Wait to Rs Ri
Op: 0 create, 0 delete, 0 update, 0 noop
Wait to: 0 reconcile, 0 delete, 0 noop
Succeeded
updatedAt: "2021-10-17T14:34:08Z"
fetch:
exitCode: 0
startedAt: "2021-10-17T14:34:01Z"
stdout: |
apiVersion: vendir.k14s.io/v1alpha1
directories:
- contents:
- imgpkgBundle:
image: projects.registry.vmware.com/tce/prometheus@sha256:b6d81e04a8ba1d6b5a33fb3f781f8238a26fa9a2add1df301b9e189d58f6682b
path: .
path: "0"
kind: LockConfig
updatedAt: "2021-10-17T14:34:06Z"
friendlyDescription: Reconcile succeeded
inspect:
exitCode: 0
stdout: |-
Target cluster 'https://100.64.0.1:443' (nodes: ikra-control-plane-xpnf2, 3+)
02:34:08PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"networkpolicystats"}
02:34:08PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"antreanetworkpolicystats"}
02:34:08PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"antreaclusternetworkpolicystats"}
Resources in app 'prometheus-ctrl'
Namespace Name Kind Owner Conds. Rs Ri Age
(cluster) alertmanager ClusterRole kapp - ok - 3m
^ alertmanager ClusterRoleBinding kapp - ok - 3m
^ prometheus Namespace kapp - ok - 3m
^ prometheus-cadvisor ClusterRole kapp - ok - 3m
^ prometheus-cadvisor ClusterRoleBinding kapp - ok - 3m
^ prometheus-kube-state-metrics ClusterRole kapp - ok - 3m
^ prometheus-kube-state-metrics ClusterRoleBinding kapp - ok - 3m
^ prometheus-node-exporter ClusterRole kapp - ok - 3m
^ prometheus-node-exporter ClusterRoleBinding kapp - ok - 3m
^ prometheus-node-exporter PodSecurityPolicy kapp - ok - 3m
^ prometheus-pushgateway ClusterRole kapp - ok - 3m
^ prometheus-pushgateway ClusterRoleBinding kapp - ok - 3m
^ prometheus-server ClusterRole kapp - ok - 3m
^ prometheus-server ClusterRoleBinding kapp - ok - 3m
prometheus alertmanager Deployment kapp 2/2 t ok - 3m
^ alertmanager Endpoints cluster - ok - 3m
^ alertmanager PersistentVolumeClaim kapp - ok - 3m
^ alertmanager Secret kapp - ok - 3m
^ alertmanager Service kapp - ok - 3m
^ alertmanager-64df5d576c ReplicaSet cluster - ok - 3m
^ alertmanager-64df5d576c-8kncz Pod cluster 4/4 t ok - 3m
^ alertmanager-d4x6s EndpointSlice cluster - ok - 3m
^ alertmanager-sa ServiceAccount kapp - ok - 3m
^ prometheus-ca Certificate kapp 1/1 t ok - 3m
^ prometheus-ca-8v8b8 CertificateRequest cluster 2/2 t ok - 3m
^ prometheus-ca-issuer Issuer kapp 1/1 t ok - 3m
^ prometheus-cadvisor DaemonSet kapp - ok - 3m
^ prometheus-cadvisor ServiceAccount kapp - ok - 3m
^ prometheus-cadvisor-5b8cdc7f65 ControllerRevision cluster - ok - 3m
^ prometheus-cadvisor-mbmbn Pod cluster 4/4 t ok - 3m
^ prometheus-cadvisor-vkpxs Pod cluster 4/4 t ok - 3m
^ prometheus-cadvisor-xn872 Pod cluster 4/4 t ok - 3m
^ prometheus-httpproxy HTTPProxy kapp 1/1 t ok - 3m
^ prometheus-kube-state-metrics Deployment kapp 2/2 t ok - 3m
^ prometheus-kube-state-metrics Endpoints cluster - ok - 3m
^ prometheus-kube-state-metrics Service kapp - ok - 3m
^ prometheus-kube-state-metrics ServiceAccount kapp - ok - 3m
^ prometheus-kube-state-metrics-b4677f5dd ReplicaSet cluster - ok - 3m
^ prometheus-kube-state-metrics-b4677f5dd-hgrtx Pod cluster 4/4 t ok - 3m
^ prometheus-kube-state-metrics-zr8sc EndpointSlice cluster - ok - 3m
^ prometheus-node-exporter DaemonSet kapp - ok - 3m
^ prometheus-node-exporter Endpoints cluster - ok - 3m
^ prometheus-node-exporter Service kapp - ok - 3m
^ prometheus-node-exporter-5947fcbf4b ControllerRevision cluster - ok - 3m
^ prometheus-node-exporter-5xsjs EndpointSlice cluster - ok - 3m
^ prometheus-node-exporter-f8kbl Pod cluster 4/4 t ok - 3m
^ prometheus-node-exporter-l45rn Pod cluster 4/4 t ok - 3m
^ prometheus-node-exporter-mp52s Pod cluster 4/4 t ok - 3m
^ prometheus-node-exporter-rmsh8 Pod cluster 4/4 t ok - 3m
^ prometheus-node-exporter-sa ServiceAccount kapp - ok - 3m
^ prometheus-pushgateway Deployment kapp 2/2 t ok - 3m
^ prometheus-pushgateway Endpoints cluster - ok - 3m
^ prometheus-pushgateway Service kapp - ok - 3m
^ prometheus-pushgateway ServiceAccount kapp - ok - 3m
^ prometheus-pushgateway-67646d8cfc ReplicaSet cluster - ok - 3m
^ prometheus-pushgateway-67646d8cfc-n4wjf Pod cluster 4/4 t ok - 3m
^ prometheus-pushgateway-6l5lj EndpointSlice cluster - ok - 3m
^ prometheus-self-signed-ca-issuer Issuer kapp 1/1 t ok - 3m
^ prometheus-server ConfigMap kapp - ok - 3m
^ prometheus-server Deployment kapp 2/2 t ok - 3m
^ prometheus-server Endpoints cluster - ok - 3m
^ prometheus-server PersistentVolumeClaim kapp - ok - 3m
^ prometheus-server Service kapp - ok - 3m
^ prometheus-server-5fd6f6d679 ReplicaSet cluster - ok - 3m
^ prometheus-server-5fd6f6d679-m5l5l Pod cluster 4/4 t ok - 3m
^ prometheus-server-9ps7c EndpointSlice cluster - ok - 3m
^ prometheus-server-sa ServiceAccount kapp - ok - 3m
^ prometheus-tls-cert Certificate kapp 1/1 t ok - 3m
^ prometheus-tls-cert-nrj4q CertificateRequest cluster 2/2 t ok - 3m
Rs: Reconcile state
Ri: Reconcile information
69 resources
Succeeded
updatedAt: "2021-10-17T14:34:08Z"
observedGeneration: 1
template:
exitCode: 0
stderr: |
resolve | final: gcr.io/cadvisor/cadvisor:v0.39.1 -> projects.registry.vmware.com/tkg/prometheus/cadvisor@sha256:b4cd4cc0ef05630f70d621420ad1316f631f35cef21edb7a62fff7bd787bbfd3
resolve | final: jimmidyson/configmap-reload:v0.5.0 -> index.docker.io/jimmidyson/configmap-reload@sha256:904d08e9f701d3d8178cb61651dbe8edc5d08dd5895b56bdcac9e5805ea82b52
resolve | final: prom/alertmanager:v0.22.2 -> index.docker.io/prom/alertmanager@sha256:624c1a5063c7c80635081a504c3e1b020d89809651978eb5d0b652a394f3022d
resolve | final: prom/prometheus:v2.27.0 -> index.docker.io/prom/prometheus@sha256:d1a9a86b9a3e60a9ea3cde141bdc936847456acc497e0affe7e288234383efa5
resolve | final: prom/pushgateway:v1.4.0 -> index.docker.io/prom/pushgateway@sha256:ca32c7864bb2573bf27ff6628a03d17b37b1aa3dc367b5d86831e6c0f0761376
resolve | final: quay.io/coreos/kube-state-metrics:v1.9.8 -> quay.io/coreos/kube-state-metrics@sha256:ace842fc85031688d06c4aa000b5b1e58ba3b9dd13d26e7c8f2547f7ee0bcc84
resolve | final: quay.io/prometheus/node-exporter:v1.1.2 -> quay.io/prometheus/node-exporter@sha256:22fbde17ab647ddf89841e5e464464eece111402b7d599882c2a3393bc0d2810
updatedAt: "2021-10-17T14:34:06Z"
PodのリストとHTTPProxyリソースを確認します。
$ kubectl get pod,httpproxy -n prometheus -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
pod/alertmanager-64df5d576c-8kncz 1/1 Running 0 4m43s 100.96.3.19 ikra-md-0-6b5984c77d-sht5z <none> <none>
pod/prometheus-cadvisor-mbmbn 1/1 Running 0 4m46s 100.96.3.15 ikra-md-0-6b5984c77d-sht5z <none> <none>
pod/prometheus-cadvisor-vkpxs 1/1 Running 0 4m46s 100.96.1.27 ikra-md-0-6b5984c77d-n7d8f <none> <none>
pod/prometheus-cadvisor-xn872 1/1 Running 0 4m46s 100.96.2.15 ikra-md-0-6b5984c77d-8scgf <none> <none>
pod/prometheus-kube-state-metrics-b4677f5dd-hgrtx 1/1 Running 0 4m44s 100.96.2.16 ikra-md-0-6b5984c77d-8scgf <none> <none>
pod/prometheus-node-exporter-f8kbl 1/1 Running 0 4m43s 100.96.2.18 ikra-md-0-6b5984c77d-8scgf <none> <none>
pod/prometheus-node-exporter-l45rn 1/1 Running 0 4m43s 100.96.3.18 ikra-md-0-6b5984c77d-sht5z <none> <none>
pod/prometheus-node-exporter-mp52s 1/1 Running 0 4m43s 100.96.0.3 ikra-control-plane-xpnf2 <none> <none>
pod/prometheus-node-exporter-rmsh8 1/1 Running 0 4m43s 100.96.1.28 ikra-md-0-6b5984c77d-n7d8f <none> <none>
pod/prometheus-pushgateway-67646d8cfc-n4wjf 1/1 Running 0 4m43s 100.96.3.16 ikra-md-0-6b5984c77d-sht5z <none> <none>
pod/prometheus-server-5fd6f6d679-m5l5l 2/2 Running 0 4m44s 100.96.2.19 ikra-md-0-6b5984c77d-8scgf <none> <none>
NAME FQDN TLS SECRET STATUS STATUS DESCRIPTION
httpproxy.projectcontour.io/prometheus-httpproxy prometheus.system.tanzu prometheus-tls valid Valid HTTPProxy
デフォルトではprometheus.system.tanzuがPrometheusに対するFQDNです。/etc/hostsに次のレコードを追加します。
ENVOY_IP=$(kubectl get svc -n projectcontour envoy -ojsonpath='{.status.loadBalancer.ingress[0].ip}')
PROMETHEUS_FQDN=$(kubectl get httpproxy -n prometheus prometheus-httpproxy -ojsonpath='{.spec.virtualhost.fqdn}')
cat <<EOF | sudo tee -a /etc/hosts
${ENVOY_IP} ${PROMETHEUS_FQDN}
EOF

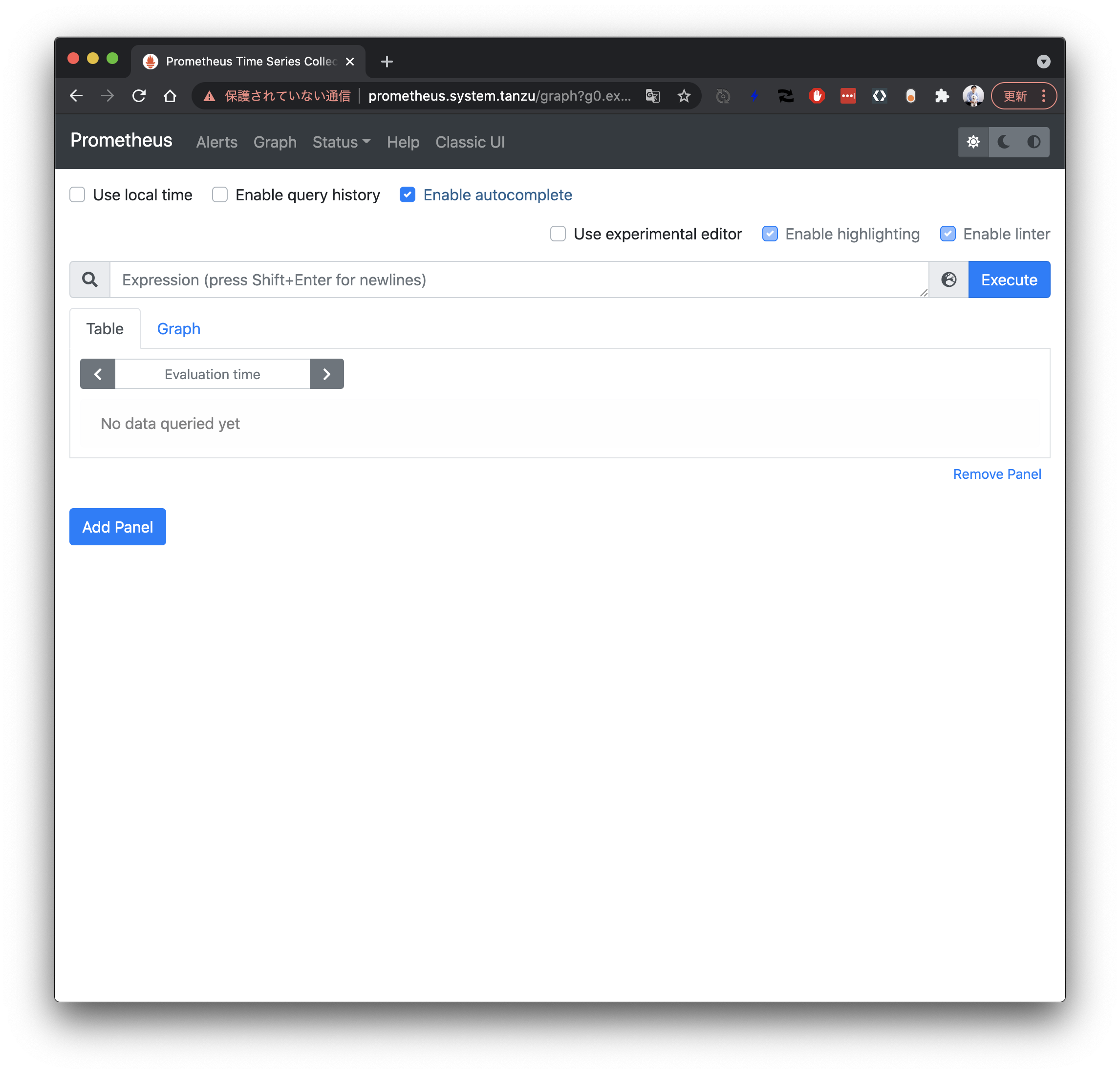

ブラウザで https://prometheus.system.tanzu にアクセスしてください。
kwtを起動していない場合は次のコマンドを実行してください。
sudo -E kwt net start
Grafana Packageのインストール
https://tanzucommunityedition.io/docs/latest/package-readme-grafana-7.5.7/
の通り。
次のコマンドでGrafanaをインストールします。デフォルトではService TypeがLoadBalancerですが、Ingressを使うのでTypeをClusterIPに変更する設定も行います。
cat <<EOF > grafana-values.yaml
grafana:
service:
type: ClusterIP
EOF
tanzu package install grafana --package-name grafana.community.tanzu.vmware.com --version 7.5.7 --namespace tce-package-install --values-file prometheus-values.yaml
設定可能な値一覧は次のコマンドで確認できます。
tanzu package available get grafana.community.tanzu.vmware.com/7.5.7 --values-schema
このPackageでインストールされるリソースは次のコマンドで確認できます。
$ kubectl get app -n tce-package-install grafana -oyaml
apiVersion: kappctrl.k14s.io/v1alpha1
kind: App
metadata:
creationTimestamp: "2021-10-17T16:15:15Z"
finalizers:
- finalizers.kapp-ctrl.k14s.io/delete
generation: 1
name: grafana
namespace: tce-package-install
ownerReferences:
- apiVersion: packaging.carvel.dev/v1alpha1
blockOwnerDeletion: true
controller: true
kind: PackageInstall
name: grafana
uid: 5073b30c-4271-436a-886a-2e9ce31c41de
resourceVersion: "96522"
uid: f387057f-3036-4c4c-bc61-afe20cab93fb
spec:
deploy:
- kapp: {}
fetch:
- imgpkgBundle:
image: projects.registry.vmware.com/tce/grafana@sha256:53d41d9ac1534fc381efa5bb181aa4cac1ec26fc77c7ffadb34550930112e193
serviceAccountName: grafana-tce-package-install-sa
template:
- ytt:
paths:
- config/
valuesFrom:
- secretRef:
name: grafana-tce-package-install-values
- kbld:
paths:
- '-'
- .imgpkg/images.yml
status:
conditions:
- status: "True"
type: ReconcileSucceeded
consecutiveReconcileSuccesses: 19
deploy:
exitCode: 0
finished: true
startedAt: "2021-10-17T16:29:23Z"
stdout: |-
Target cluster 'https://100.64.0.1:443' (nodes: ikra-control-plane-xpnf2, 3+)
04:29:23PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"networkpolicystats"}
04:29:23PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"antreaclusternetworkpolicystats"}
04:29:23PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"antreanetworkpolicystats"}
Changes
Namespace Name Kind Conds. Age Op Op st. Wait to Rs Ri
Op: 0 create, 0 delete, 0 update, 0 noop
Wait to: 0 reconcile, 0 delete, 0 noop
Succeeded
updatedAt: "2021-10-17T16:29:24Z"
fetch:
exitCode: 0
startedAt: "2021-10-17T16:29:17Z"
stdout: |
apiVersion: vendir.k14s.io/v1alpha1
directories:
- contents:
- imgpkgBundle:
image: projects.registry.vmware.com/tce/grafana@sha256:53d41d9ac1534fc381efa5bb181aa4cac1ec26fc77c7ffadb34550930112e193
path: .
path: "0"
kind: LockConfig
updatedAt: "2021-10-17T16:29:23Z"
friendlyDescription: Reconcile succeeded
inspect:
exitCode: 0
stdout: |-
Target cluster 'https://100.64.0.1:443' (nodes: ikra-control-plane-xpnf2, 3+)
04:29:24PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"antreaclusternetworkpolicystats"}
04:29:24PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"antreanetworkpolicystats"}
04:29:24PM: info: Resources: Ignoring group version: schema.GroupVersionResource{Group:"stats.antrea.tanzu.vmware.com", Version:"v1alpha1", Resource:"networkpolicystats"}
Resources in app 'grafana-ctrl'
Namespace Name Kind Owner Conds. Rs Ri Age
(cluster) grafana Namespace kapp - ok - 14m
^ grafana-clusterrole ClusterRole kapp - ok - 14m
^ grafana-clusterrolebinding ClusterRoleBinding kapp - ok - 14m
grafana grafana ConfigMap kapp - ok - 14m
^ grafana Deployment kapp 2/2 t ok - 13m
^ grafana Endpoints cluster - ok - 14m
^ grafana Secret kapp - ok - 14m
^ grafana Service kapp - ok - 14m
^ grafana-86556f498b ReplicaSet cluster - ok - 13m
^ grafana-86556f498b-db25q Pod cluster 4/4 t ok - 13m
^ grafana-ca Certificate kapp 1/1 t ok - 14m
^ grafana-ca-issuer Issuer kapp 1/1 t ok - 14m
^ grafana-ca-zvt7g CertificateRequest cluster 2/2 t ok - 13m
^ grafana-dashboard ConfigMap kapp - ok - 14m
^ grafana-dashboard-apiserver ConfigMap kapp - ok - 14m
^ grafana-dashboard-default ConfigMap kapp - ok - 14m
^ grafana-datasource ConfigMap kapp - ok - 14m
^ grafana-httpproxy HTTPProxy kapp 1/1 t ok - 14m
^ grafana-pvc PersistentVolumeClaim kapp - ok - 14m
^ grafana-sa ServiceAccount kapp - ok - 14m
^ grafana-self-signed-ca-issuer Issuer kapp 1/1 t ok - 13m
^ grafana-tls-cert Certificate kapp 1/1 t ok - 14m
^ grafana-tls-cert-sz4cn CertificateRequest cluster 2/2 t ok - 13m
^ grafana-wbqmh EndpointSlice cluster - ok - 14m
Rs: Reconcile state
Ri: Reconcile information
24 resources
Succeeded
updatedAt: "2021-10-17T16:29:24Z"
observedGeneration: 1
template:
exitCode: 0
stderr: |
resolve | final: grafana/grafana:7.5.7 -> projects.registry.vmware.com/tkg/grafana/grafana@sha256:df8f25cc9ee43d6ea4c22f9c6c46644e2b9a485562dd0dafe831b5b582ac0a71
resolve | final: kiwigrid/k8s-sidecar:1.12.1 -> projects.registry.vmware.com/tkg/grafana/k8s-sidecar@sha256:9f1ad1e5e404bc43f9591b1189c187f535d6f61769468c49b4fc97add803d7b9
updatedAt: "2021-10-17T16:29:23Z"
PodのリストとHTTPProxyリソースを確認します。
$ kubectl get pod,httpproxy -n grafana
NAME READY STATUS RESTARTS AGE
pod/grafana-86556f498b-db25q 2/2 Running 0 14m
NAME FQDN TLS SECRET STATUS STATUS DESCRIPTION
httpproxy.projectcontour.io/grafana-httpproxy grafana.system.tanzu grafana-tls valid Valid HTTPProxy
デフォルトではgrafana.system.tanzuがGrafanaに対するFQDNです。/etc/hostsに次のレコードを追加します。
ENVOY_IP=$(kubectl get svc -n projectcontour envoy -ojsonpath='{.status.loadBalancer.ingress[0].ip}')
GRAFANA_FQDN=$(kubectl get httpproxy -n grafana grafana-httpproxy -ojsonpath='{.spec.virtualhost.fqdn}')
cat <<EOF | sudo tee -a /etc/hosts
${ENVOY_IP} ${GRAFANA_FQDN}
EOF

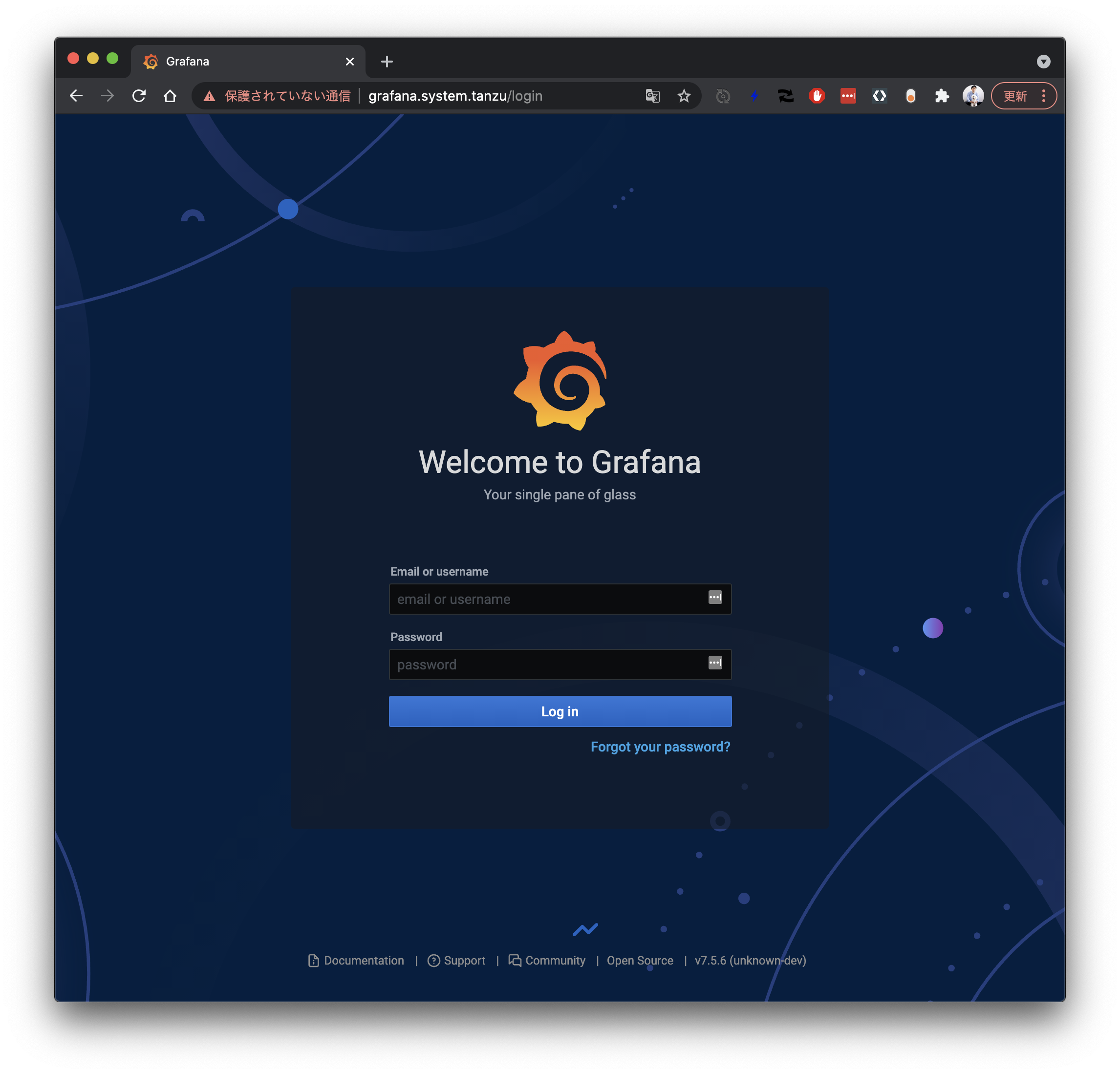

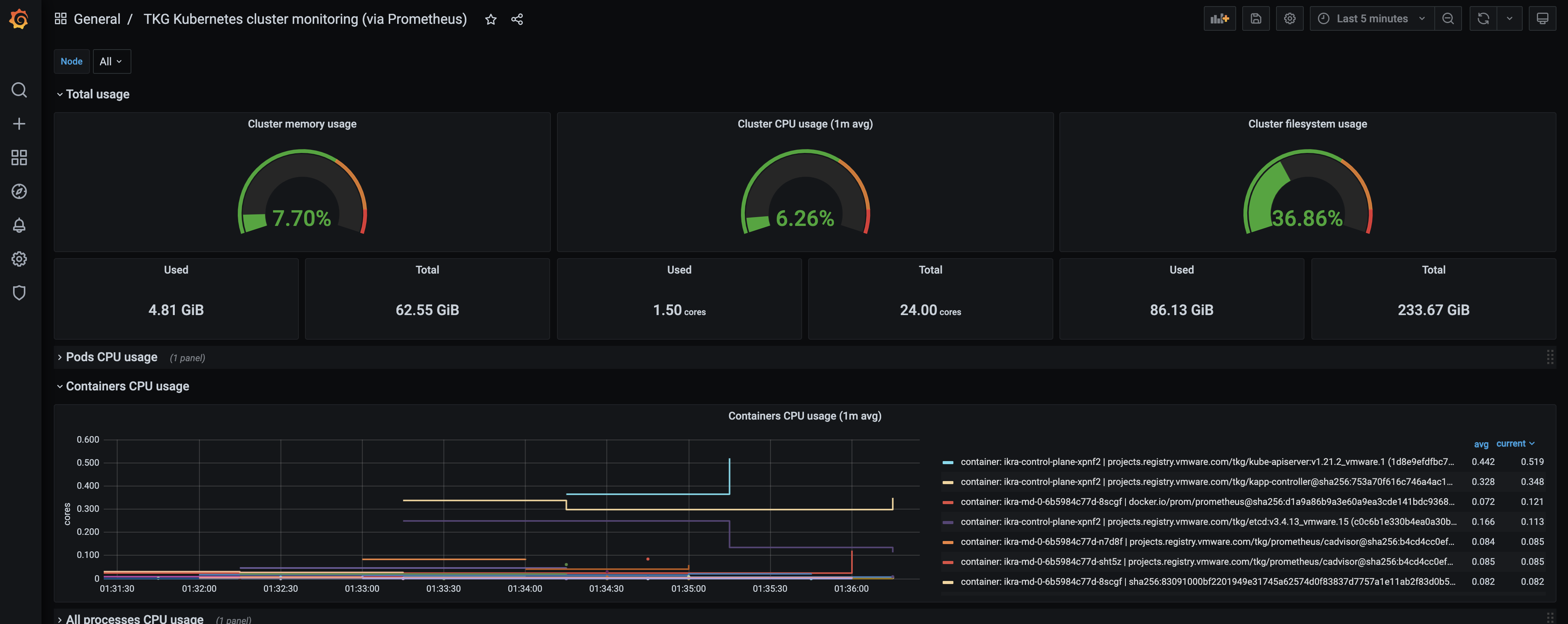

ブラウザで https://grafana.system.tanzu にアクセスしてください。
ユーザー名とパスワードはデフォルトで admin / admin です。
